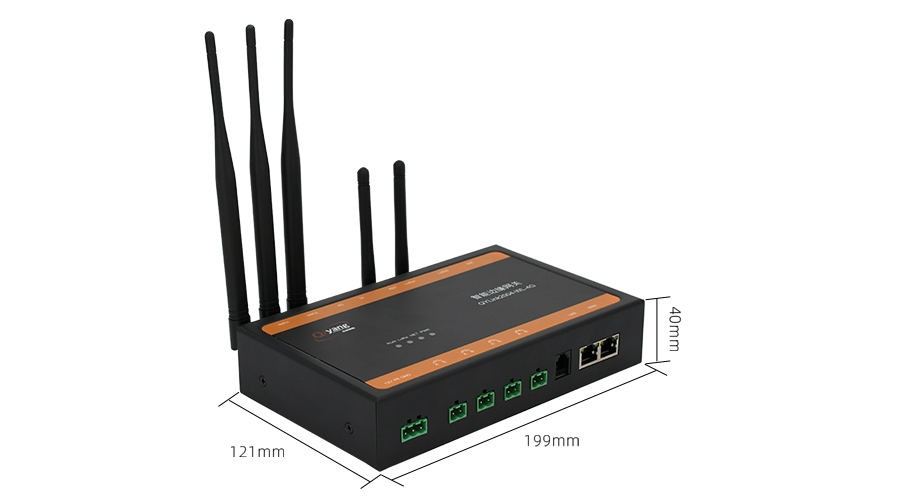

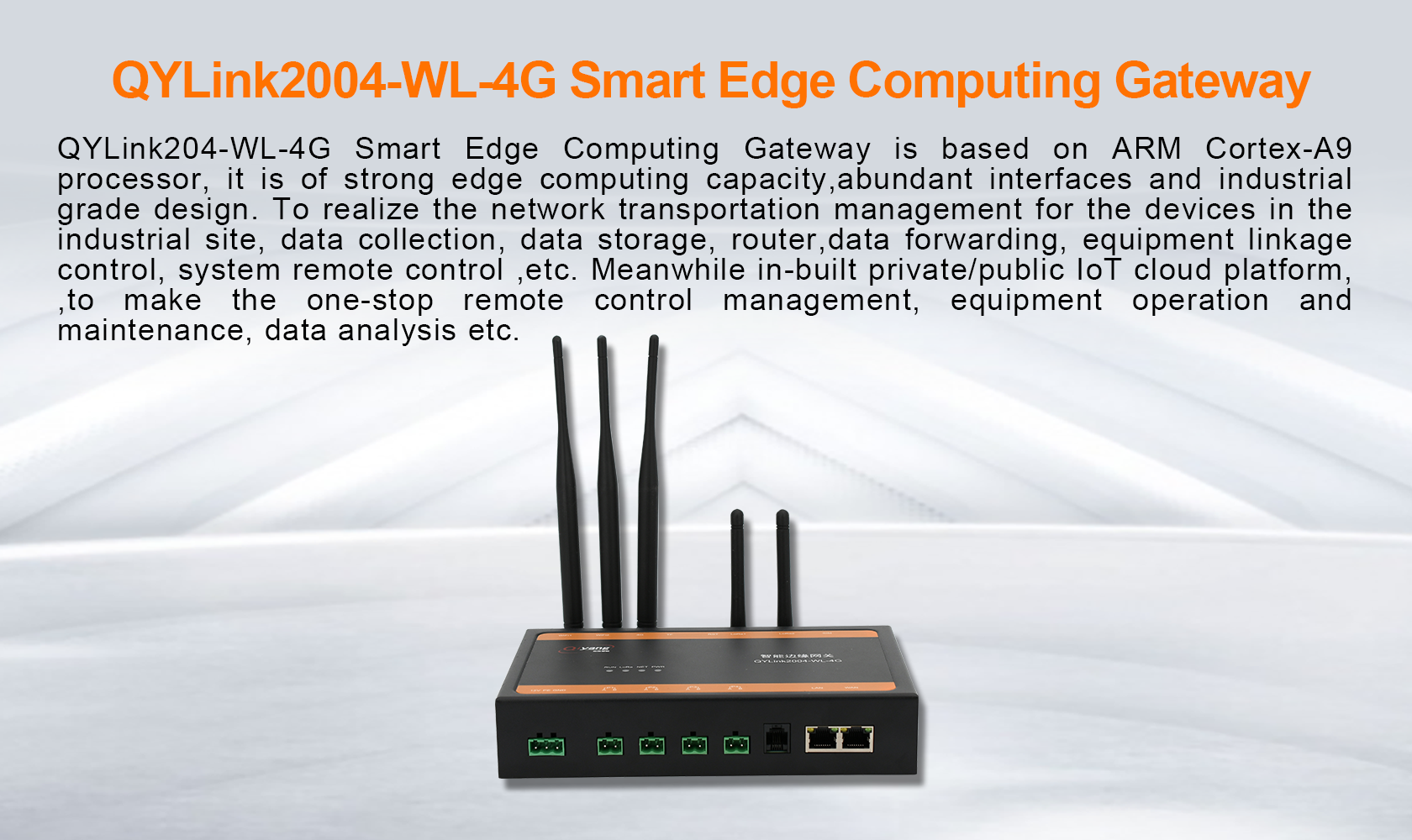

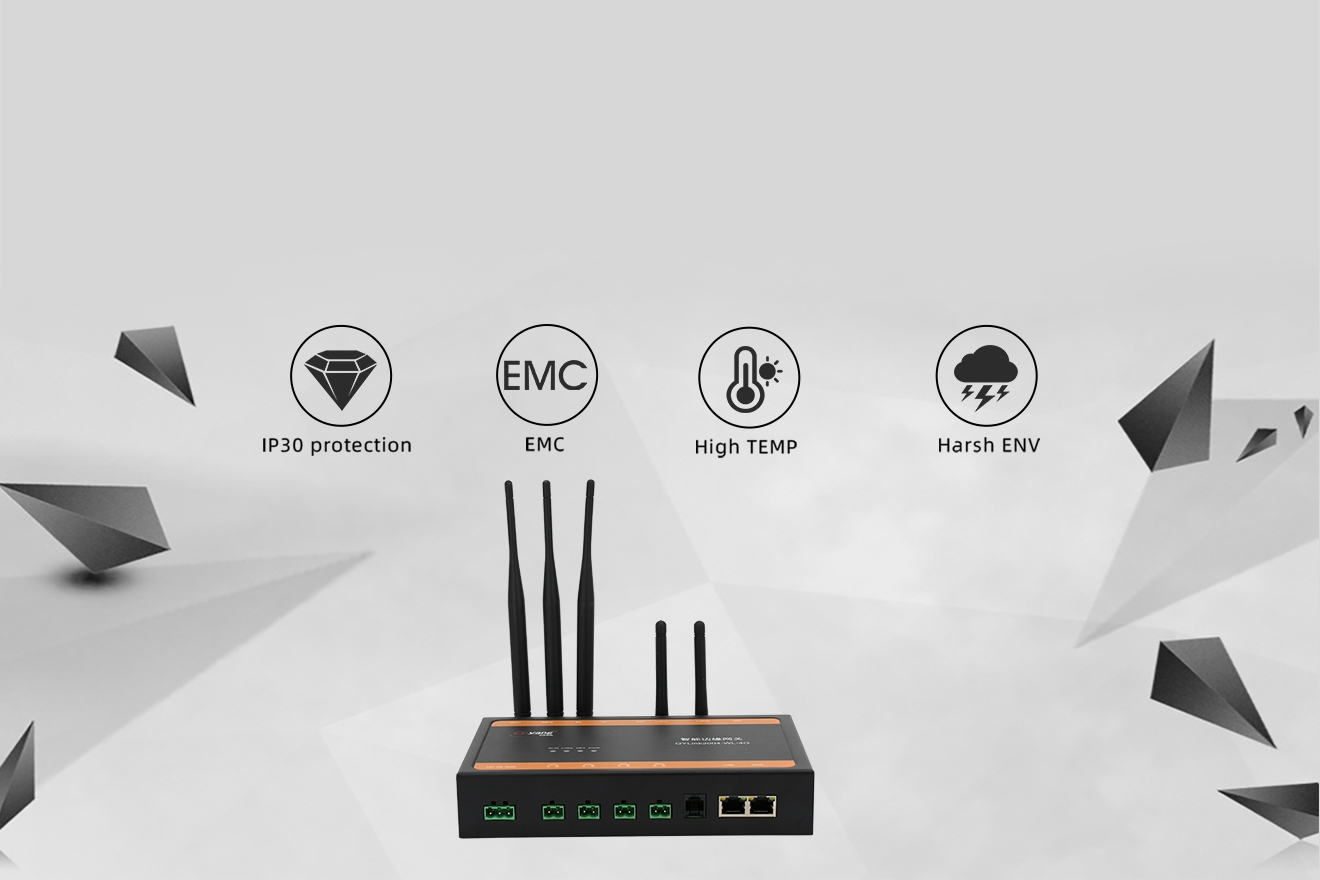

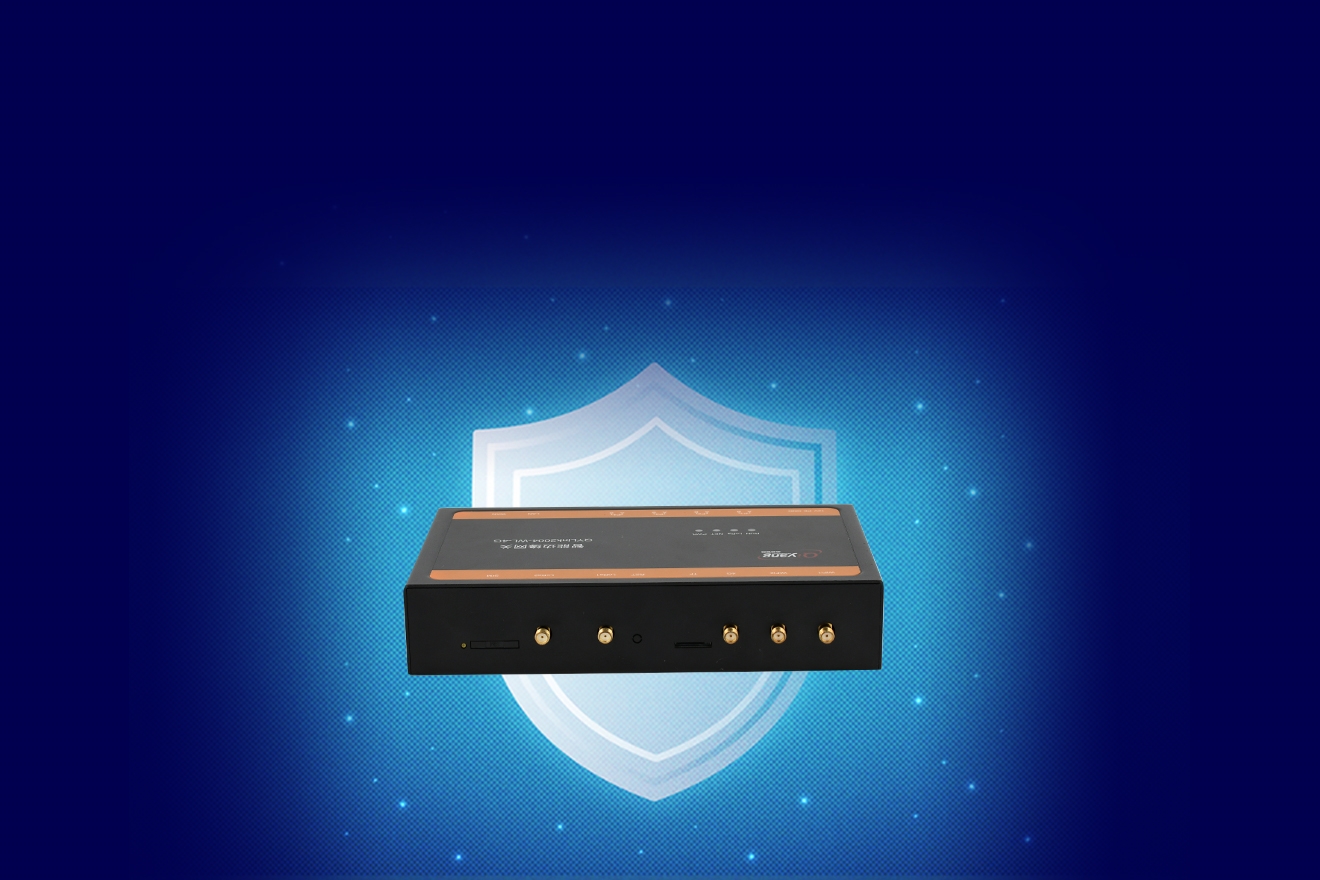

QYLink2004-WL-4G
CPU: ARM Cortex-A7 Industrial Grade CPU,528MHz
RAM: 512MB DDR3
Flash: 4GB eMMC
4G: 4G Full Netcom
Wi-Fi: 2*2.4G Wi-Fi
| Parameters | |||
|---|---|---|---|
| CPU | ARM Cortex-A7 Industrial Grade CPU,528MHz | RAM | 512MB DDR3 |
| Flash | 4GB eMMC | 4G | 4G Full Netcom |

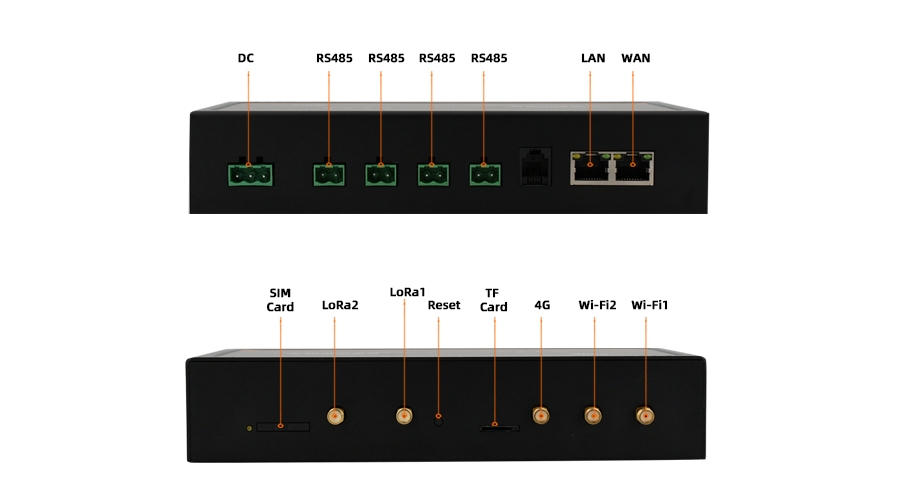

| Wi-Fi | 2*2.4G Wi-Fi | Ethernet | 1*WAN(100Mbps),1*LAN(100Mbps) |
| Industrial serial port | 4*RS485 | LoRa | 2*LoRa@470MHz(Large Power) |
| Serial plug connector | RJ11 Wire Terminal | SIM Card | Standard Drawer Type |
| Antenna | 50Ω/SMA N-Female | Reset Button | Support factory reset |
| Power Supply | 12/2A DC Phoenix Contact Power Plug | Power Consumption | 3W |
| ECC indicator | EN61000-4 Criterion, III | Shockproof | IEC60068-2-27 |
| Vibration | IEC60068-2-6 | Drop | IEC60068-2-32 |
| MTBF | ＞100000 hours | Operating Temperature | -30℃~+70℃ |
| Storage temperature | -45℃~+85℃ | Working Humidity | ≤95%RH (Non-condensing ) |
