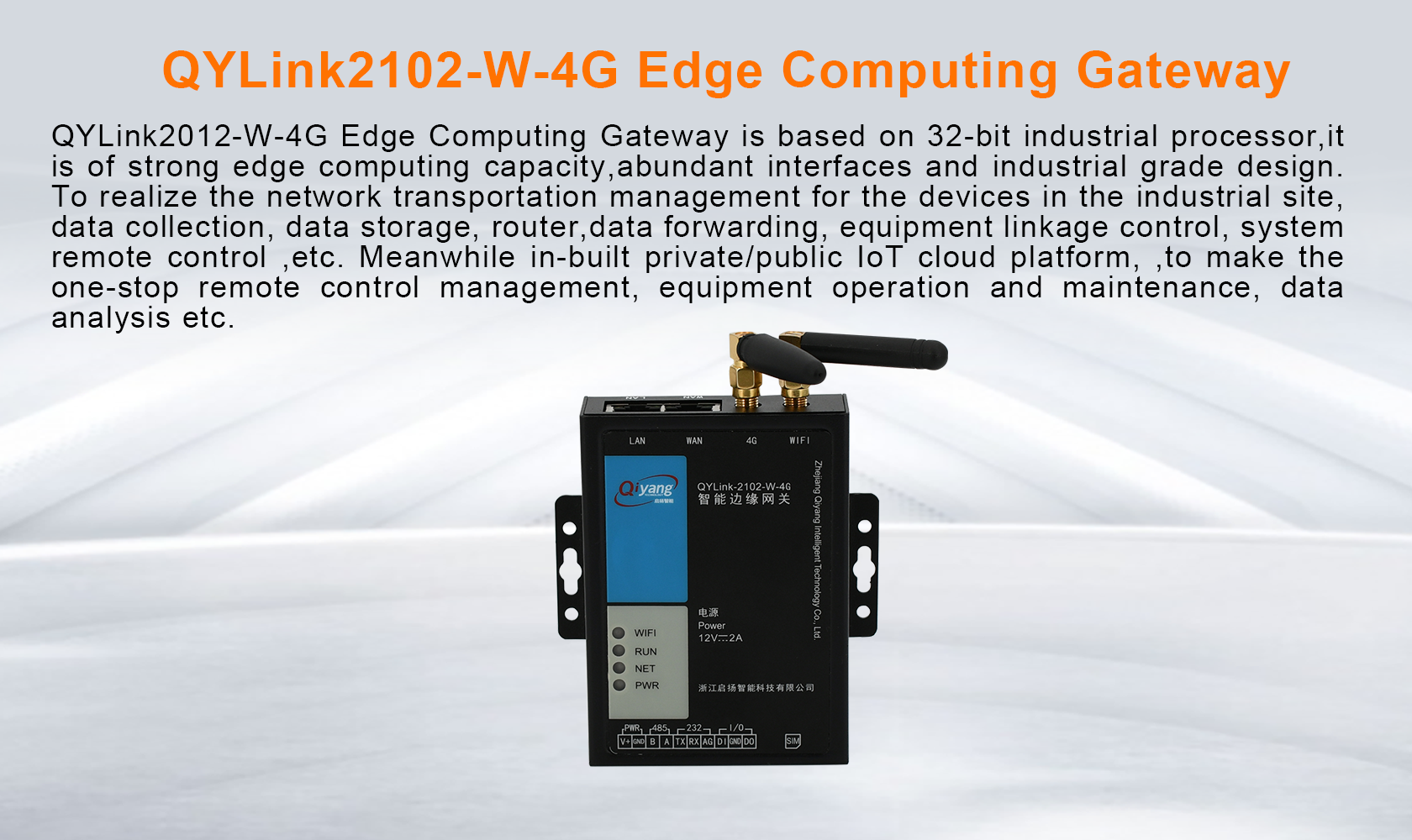

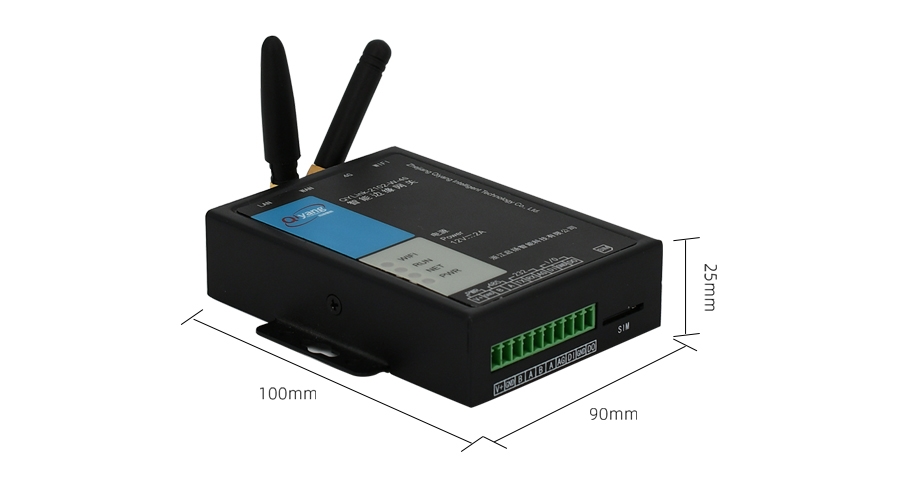

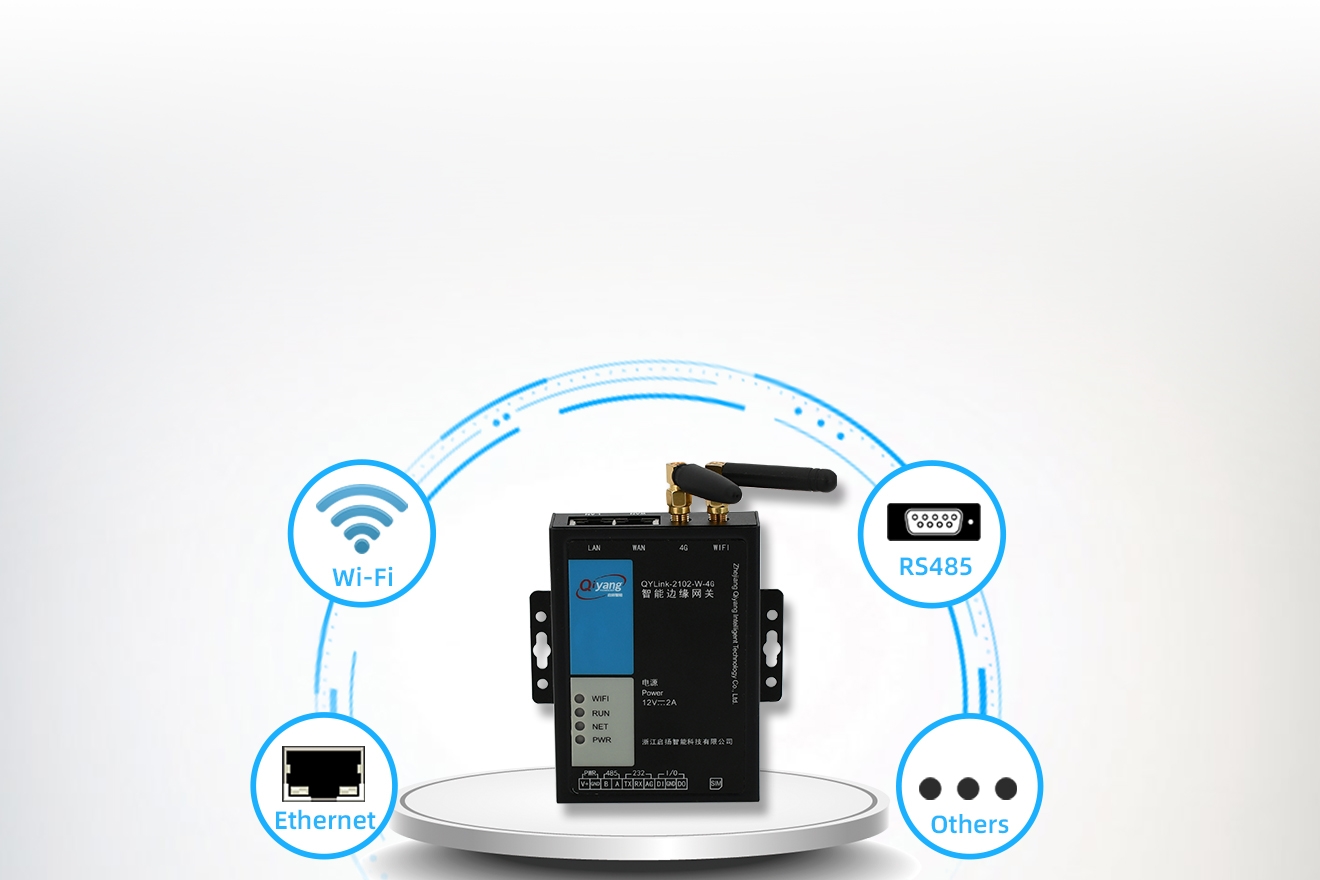

QYLink2102-W-4G
CPU: 32-Bit Industrial CPU, MIPS24KEc 580MHz
RAM: 128MB DDR2
Flash: 32MB NOR
4G: 4G Full Netcom
Wi-Fi: 2.4G Wi-Fi

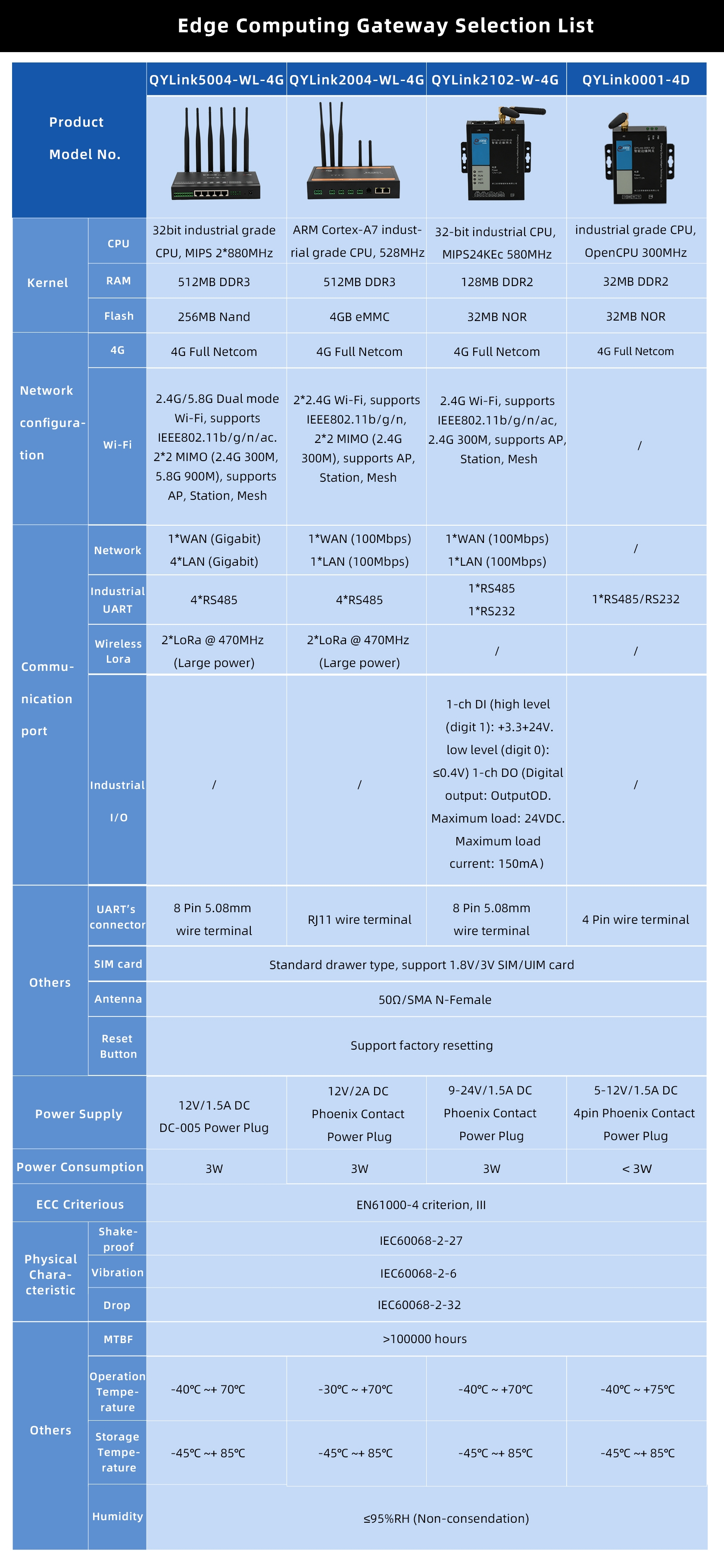

| Parameters | |||
|---|---|---|---|
| CPU | 32-Bit Industrial CPU, MIPS24KEc 580MHz | RAM | 128MB DDR2 |
| Flash | 32MB NOR | 4G | 4G Full Netcom |

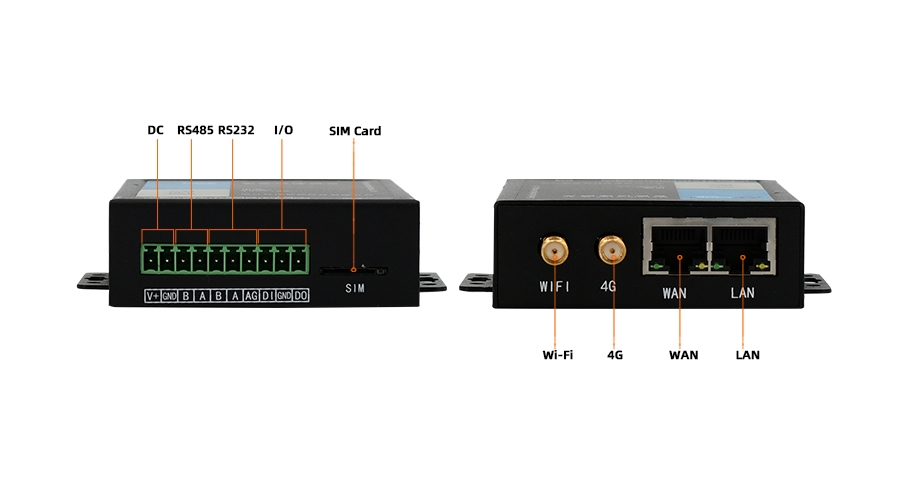

| Wi-Fi | 2.4G Wi-Fi | Ethernet | 1*WAN(100Mbps),1*LAN(100Mbps) |
| Industrial UART | 1*RS485, 1*RS232 | I/O | I*DI, 1*DO |
| UART' s connector | 8-Pin 5.08mm Wire Terminal | SIM Card | Standard Drawer Type |
| Antenna | 50Ω/SMA N-Female | Reset Button | Support factory resetting |
| Power Supply | 9-24V/1.5A DC Phoenix Contact Power Plug | Power Consumption | 3W |
| ECC Criterious | EN61000-4 Criterion, III | Shockproof | IEC60068-2-27 |
| Vibration | IEC60068-2-6 | Drop | IEC60068-2-32 |
| MTBF | ＞100000 hours | Operating Temperature | -40℃~+70℃ |
| Storage temperature | -45℃~+85℃ | Working Humidity | ≤95%RH (Non-condensing) |
