| CPU |
RK3288 Quad-Core Processor, 1.8GHz frequency |
GPU |
Mali-T764 |
| VPU |
Support 4K 10BITS H265 / H264 Video Decoding, 1080P multi-format video decoding (VC-1, MPEG-1/2/4, VP8), 1080P video encoding, support H.264, VP8 format |
RAM |
2GB DDR3 |
| Flash |
8GB eMMC(16GB/32GB Opt.) |
Wi-Fi/BT |
2.4GHz Wi-Fi, support BT4.2 |

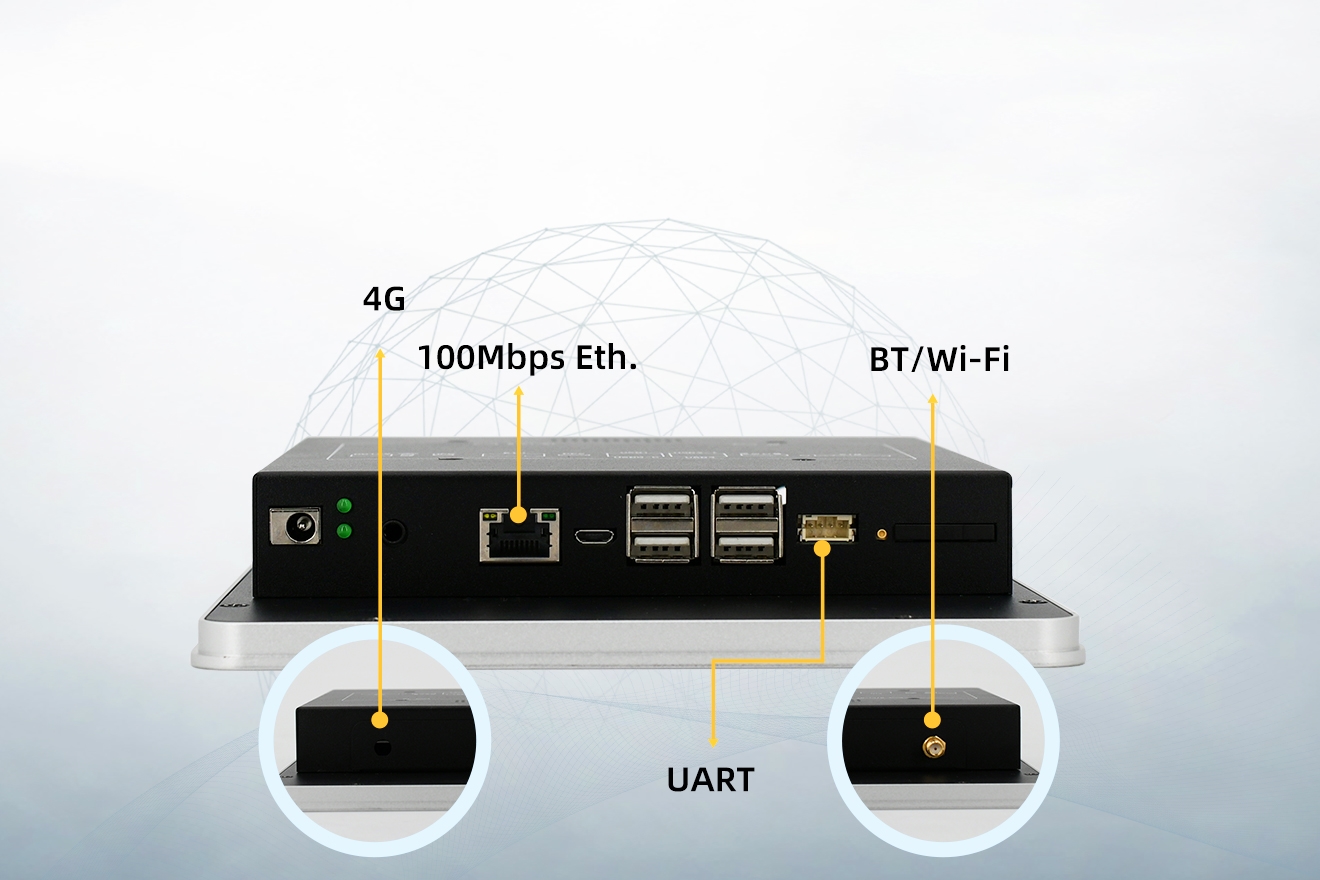

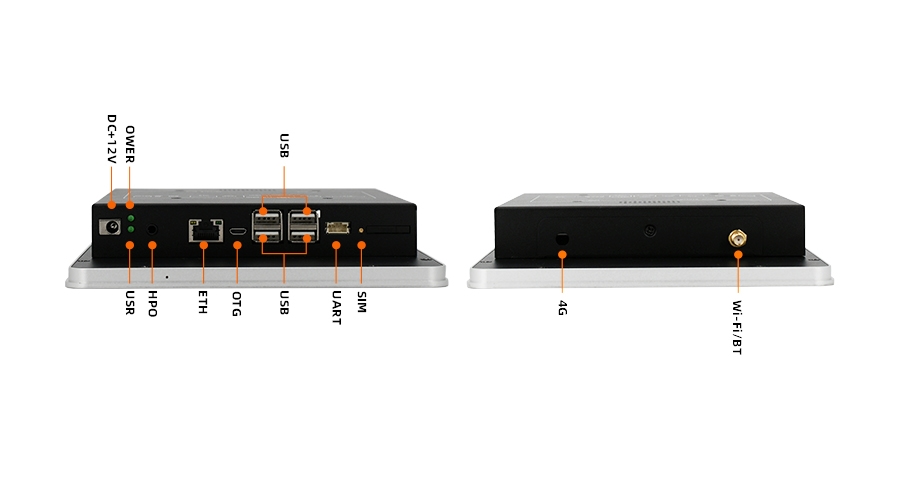

| Ethernet |
1*10/100Mbps |
Audio |
8Ω 2W Speaker |
| UART |
1*UART-TTL, 2*RS232(Opt.), 1*RS485(Opt.) |
USB |
4*USB 2.0 Host, 1*USB 2.0 OTG |
| SIM Card |
1*Standard SIM Card |
LED |
1*Power Indicator, 1*System Idicator |
| Headphone interface |
3.5mm Headphone Socket |
Screen Size |
10.1 inch |
| Resolution |
1280*800 |
Touch Screen |
Capacitive Touch Screen |
| Brightness |
450CD/M2 |
Perspective |
Full View |

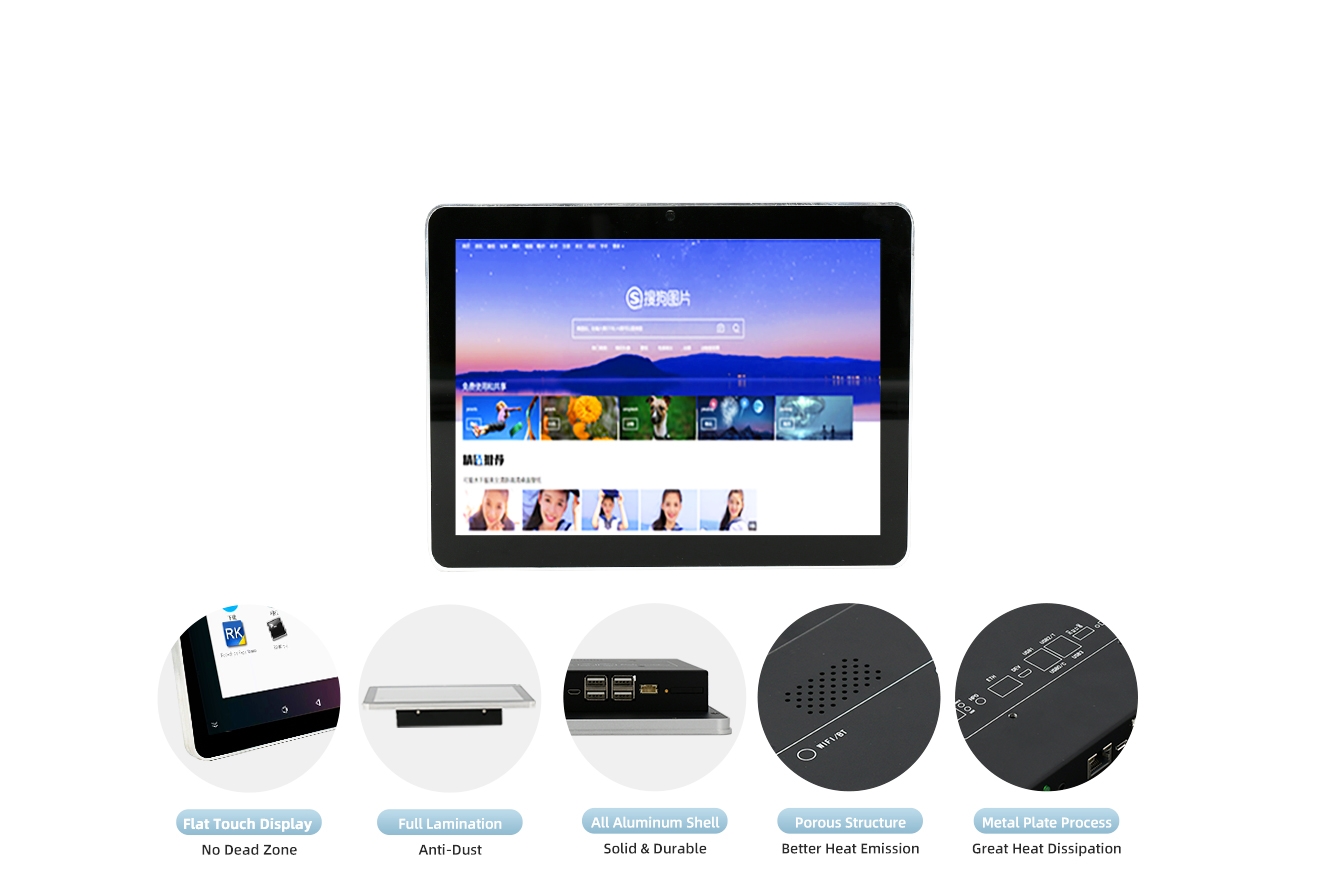

| Material |
Galvanized Plate + Aluminum Alloy |

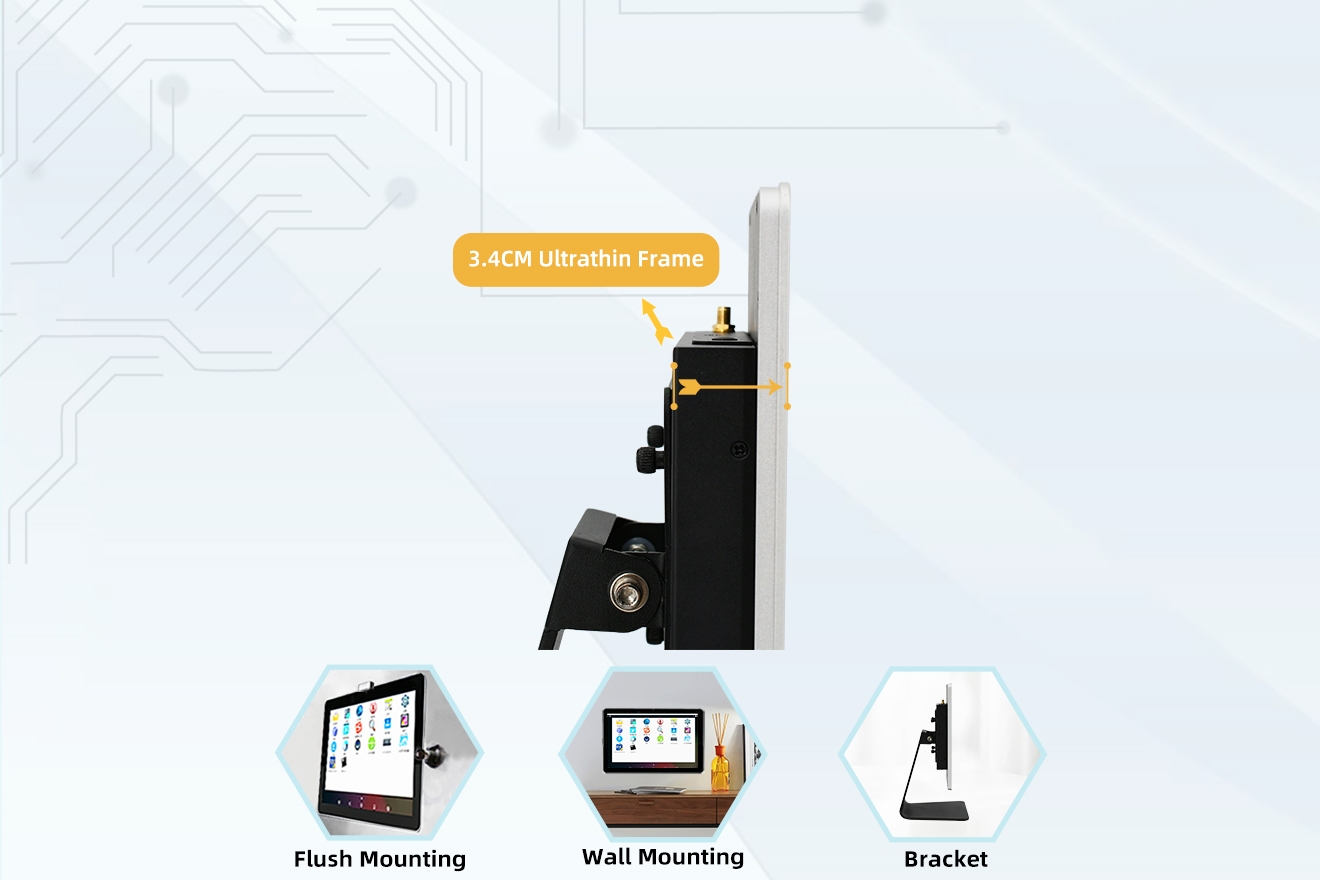

Installation method |
Embedded, Wall Mount, Bracket |
| Power Consumption |
12W |
Weight |
1.2KG |

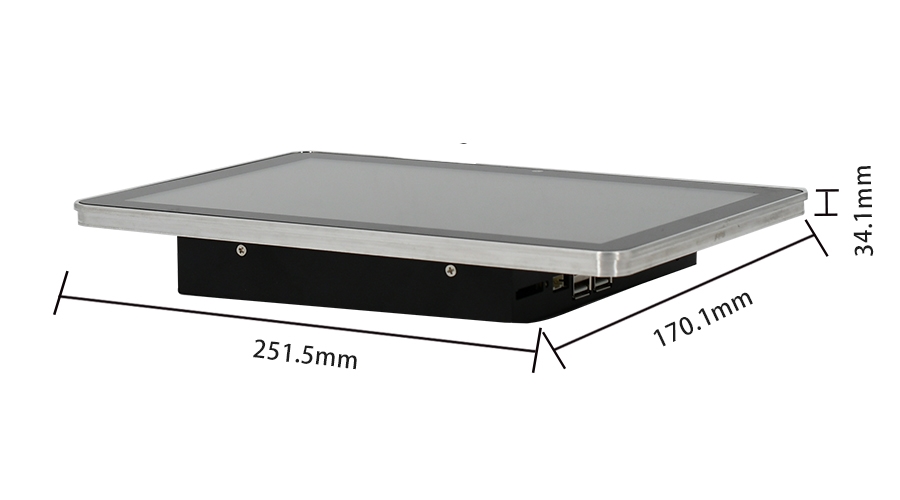

| Size |
251.5mm*170.1mm*34.1mm |
Power interface |
DC 5.5mm*2.5mm |
| Power Supply |
DC12V-2.5A |
Operating Temperature |
-10℃~+60℃ |
| Working Humidity |
5% ~ 95%, Non-condensing |
Operating System |
Android5.1/Android7.1 |
| OTA upgrade |
Available |
EMC |
Class B |
| ESD |
Contact ± 4kV, Air ± 8kV |
Protective level |
IP50 |
