| Size |
15.6‘’，16:9 |
Pixel |
1920*1080 |
| Pixel Pitch |
0.248*0.248 |
Maximum BPP |
262K |
| Contrast Ratio |
3000:1 |
Brightness |
400cd/cm2 |
| Viewing Angle |
89/89/89/89 (Left/Right/Up/Down) |
Response Time |
18ms（Typ) |
| Backlight Lifetime |
≥30,000hrs |
Touch Panel Technology |
No touch, 10-contact capacitive screen |
| CPU |
Intel® Celeron® Processor J1900 2.0GHZ, Quad-Core Quad-Threading |
Memory |
4GB DDR3L 1600MHz RAM on board |
| Solid Disk |
SSD 64GB/128GB /256GB/512GB |
Watchdog |
0～255s Programmable |

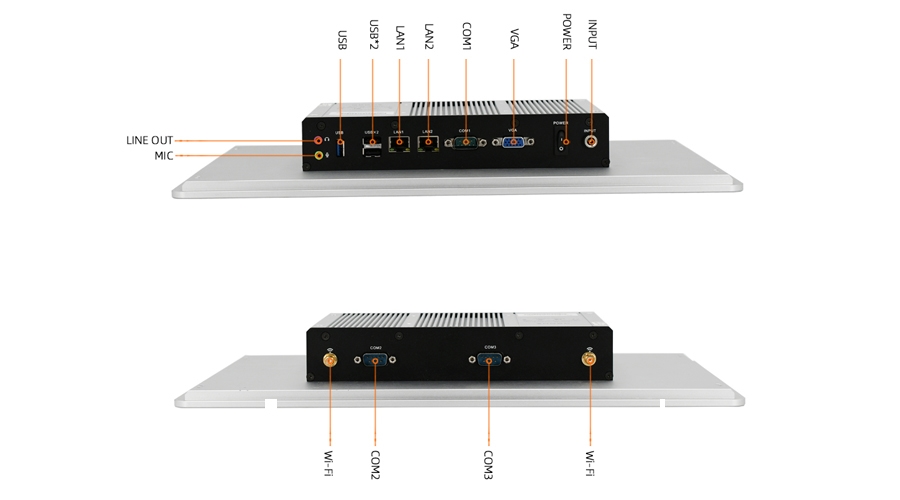

| Network |
2*Realtek RTL8111F 10M/100M/1000M Adaptive Gigabit Network Chip |
UART |
3*RS232 |
| USB |
2*USB2.0，1*USB3.0 |
Extension Interface |
Wi-Fi |
| Display Interface |
1*VGA |
Audio |
1*MIC ，1*LINE OUT |
| Power Supply |
DC12V input, overvoltage, overcurrent, reverse connection protection |
Maximum Consumption |
34W |

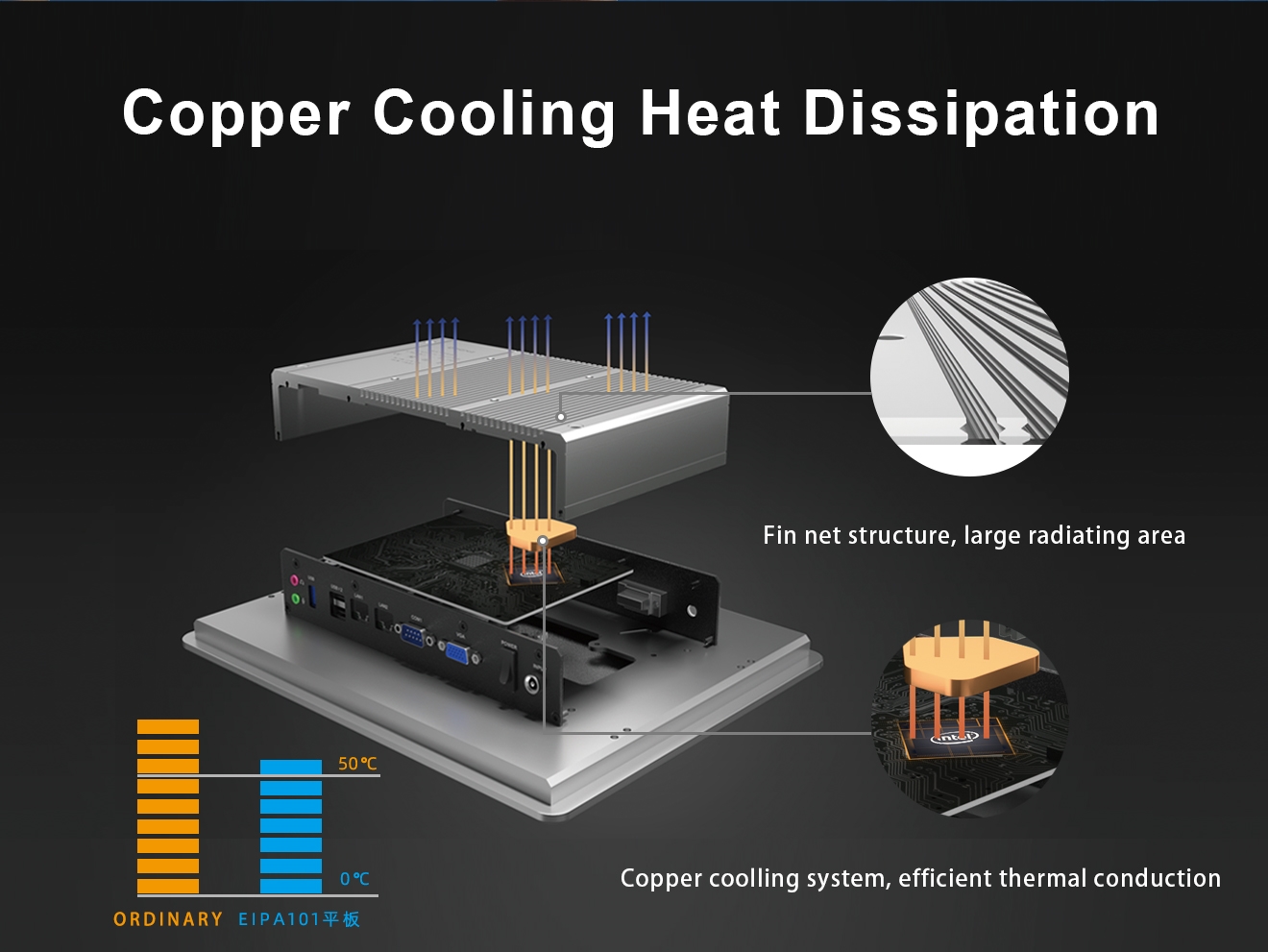

| Heat Disspation |
Copper cooling system, finned mesh cooling |

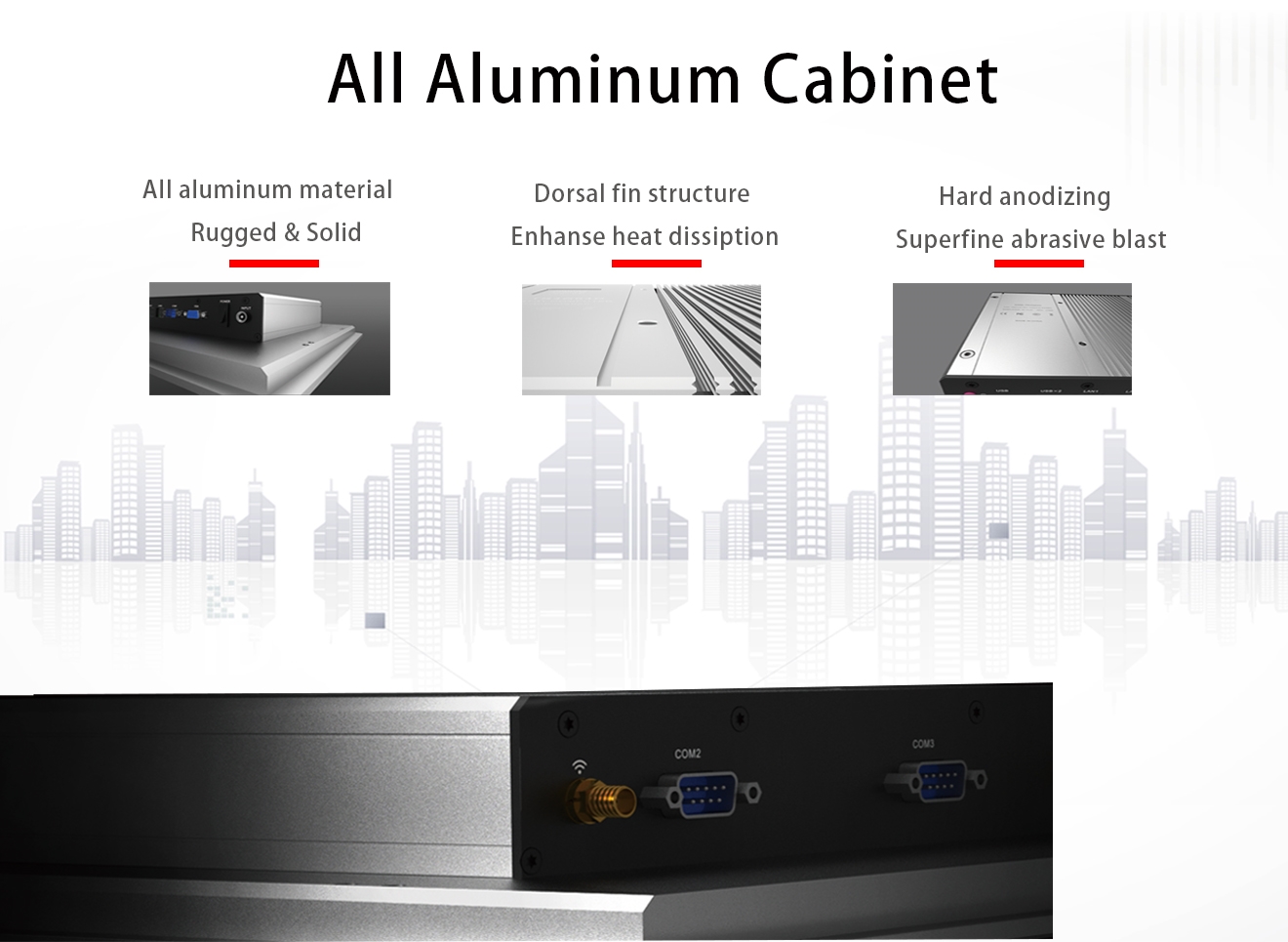

Structure |
6061 aluminum alloy, silver hard anodized |

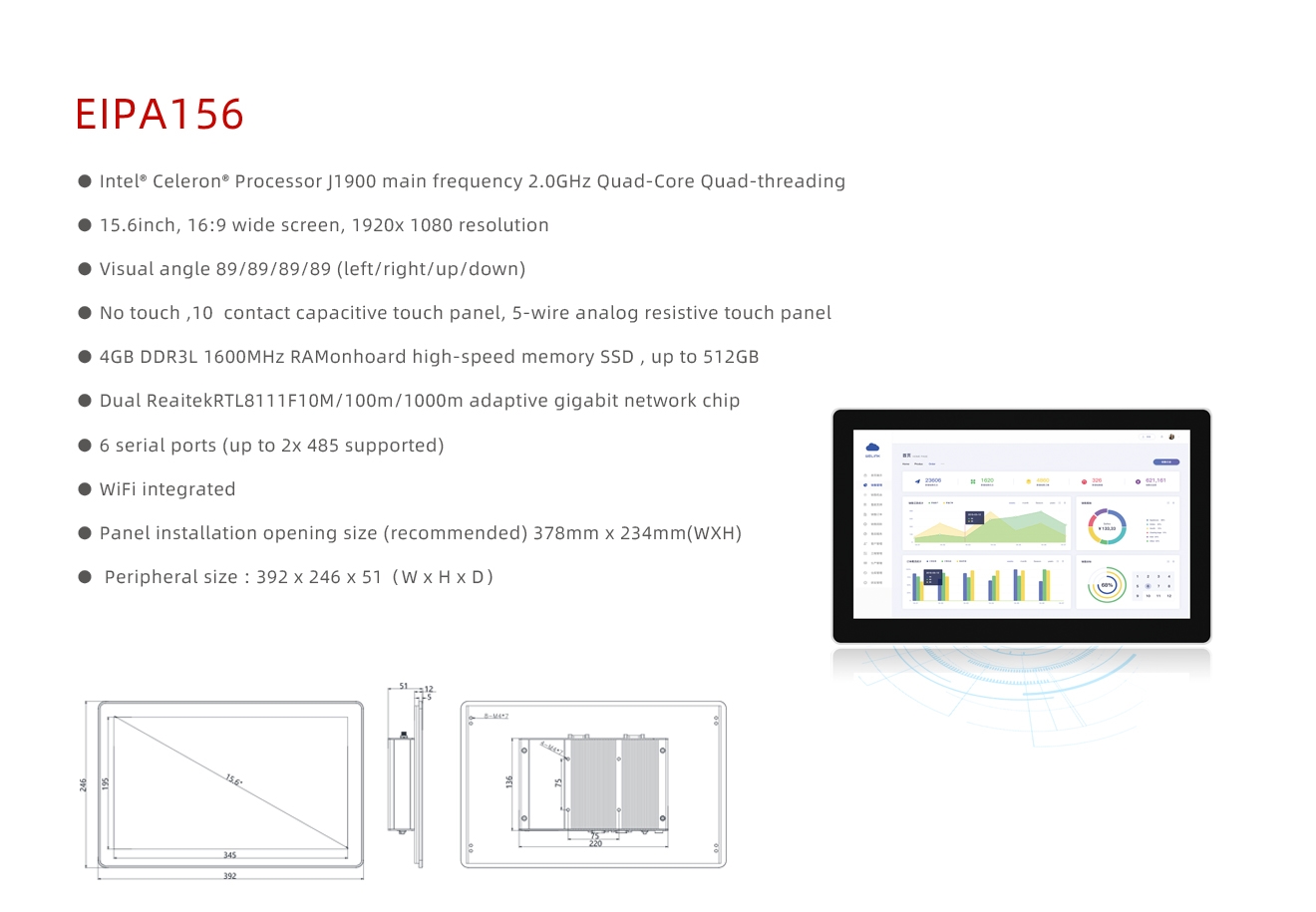

| Dimensions(mm) |
392*246*51 (WxHxD) |
Mounting Dimension(mm) |
378*234(WxH) |
| Installation Method |
Embedded Installation, VESA Bracket Installation |
Operating Temperature |
-20℃～+60℃(-4℉～+140℉) |
| Storage temperature |
-30℃～+80℃(-22℉～+176℉) |
Storage Humidity |
10%～95%@40℃ |
| Net Weight |
3.4 kg |
Vibration |
1.5g,10～200Hz |
| Rush |
50g,20ms |
Certificates |
CE,FCC Class B |
| Operating System |
Win7,Unix,Linux |
|
|
