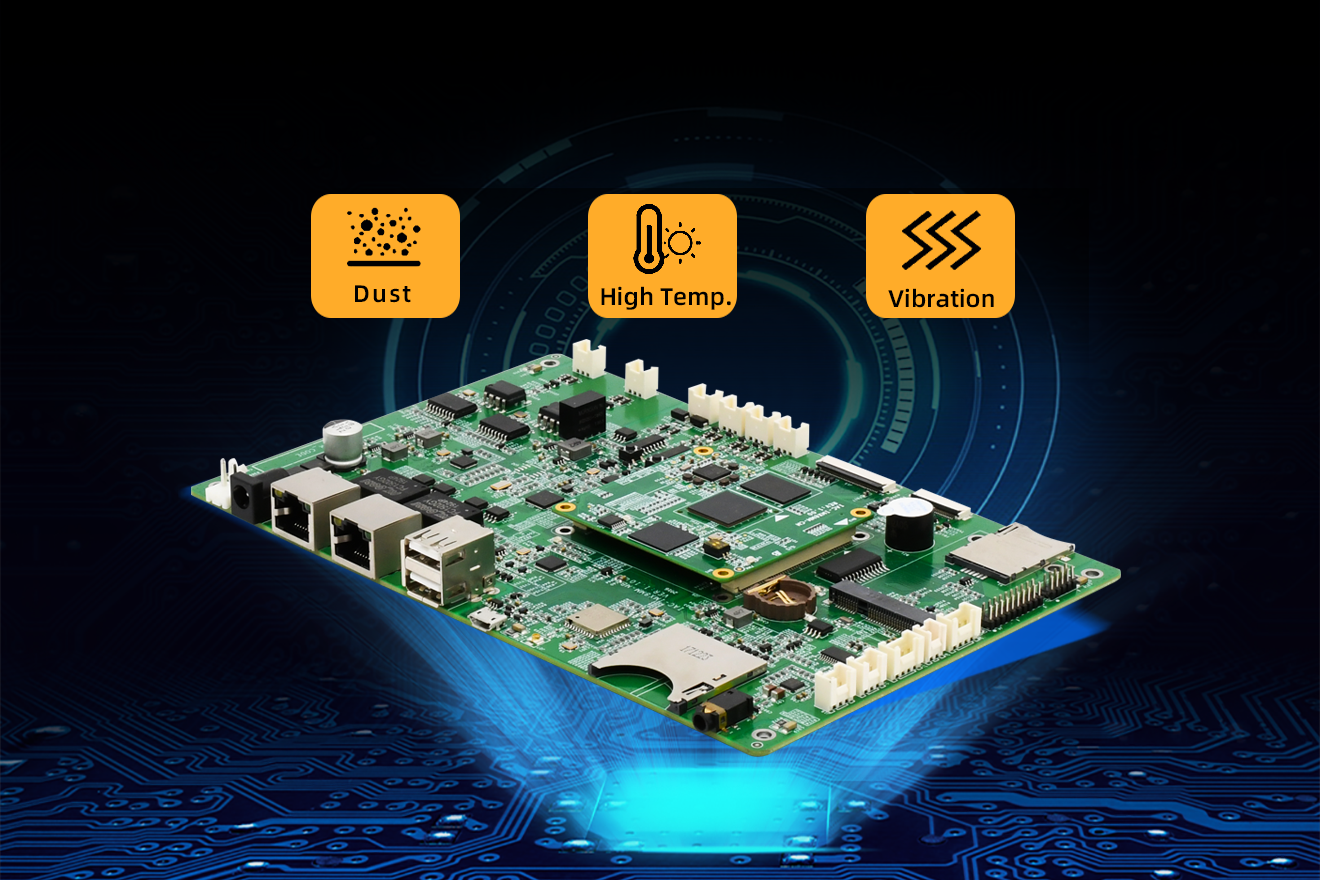

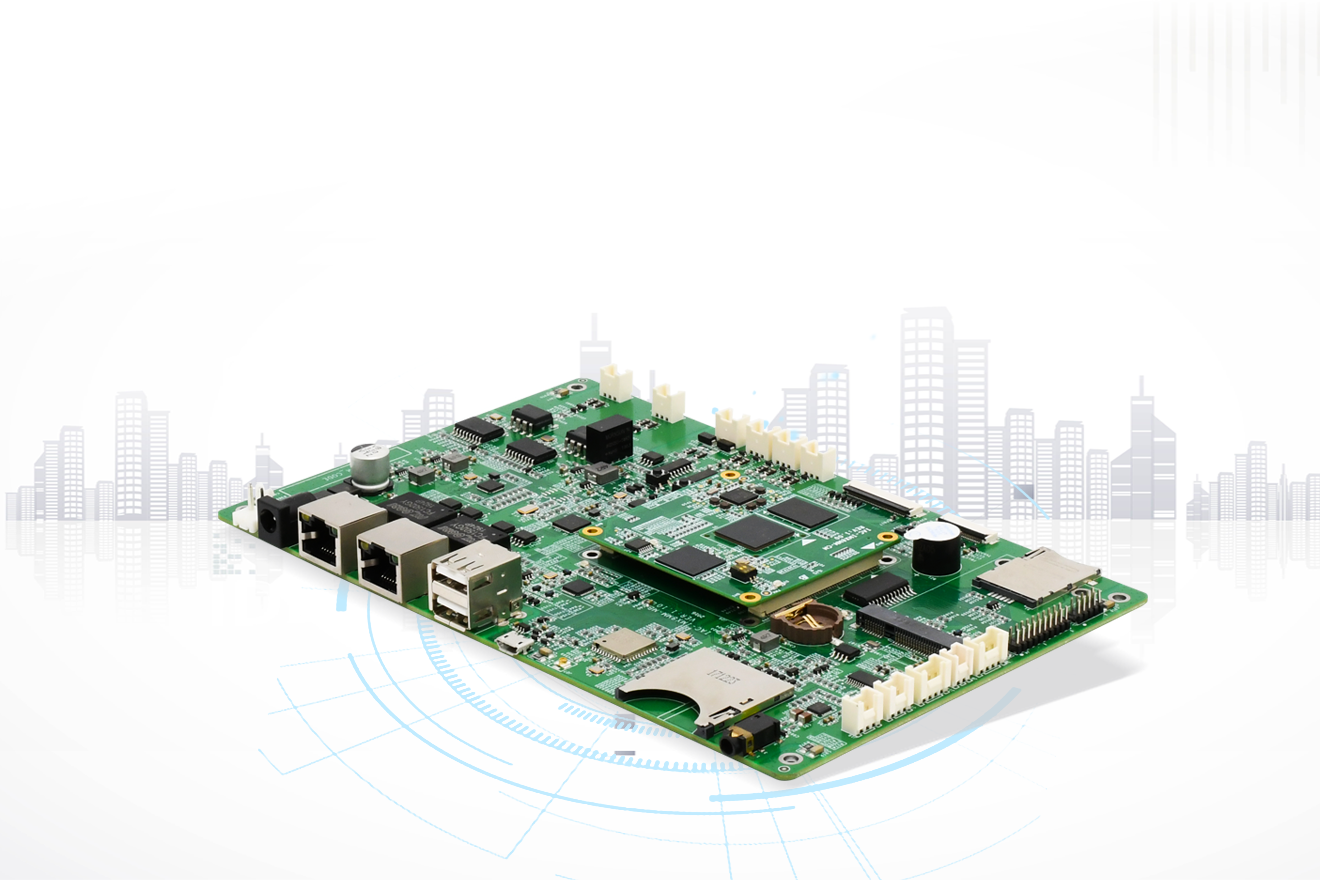

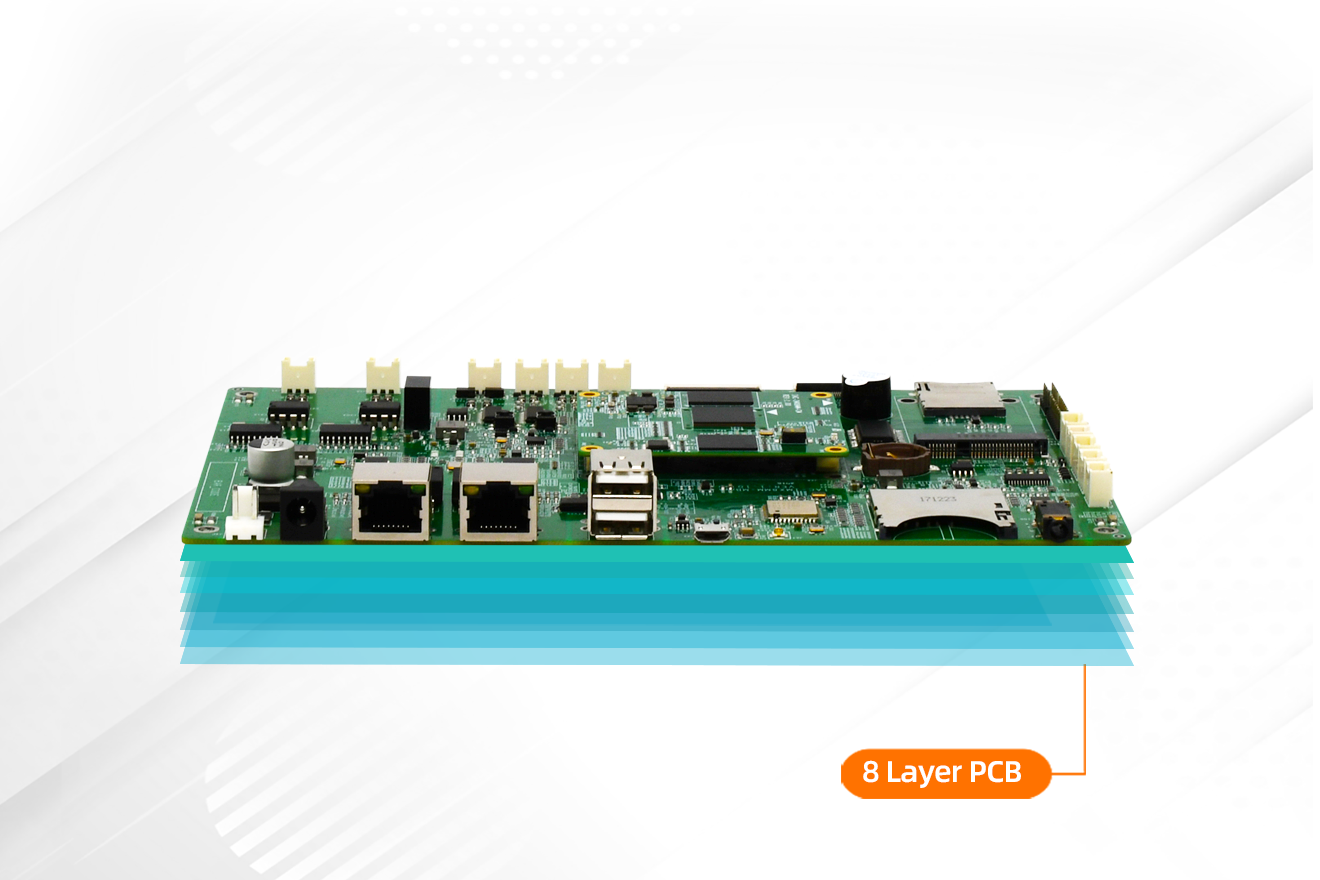

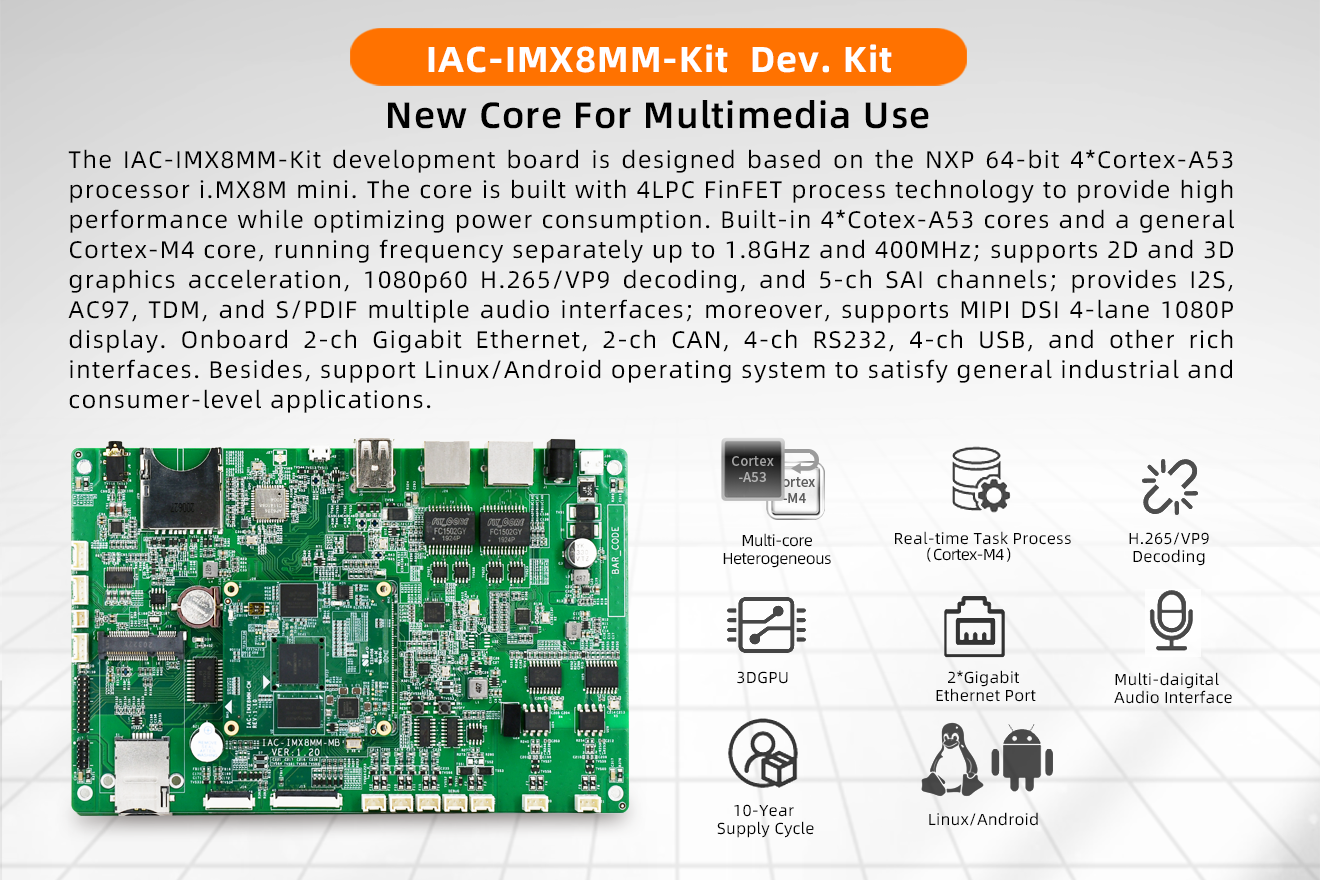

IAC-IMX8MM-Kit

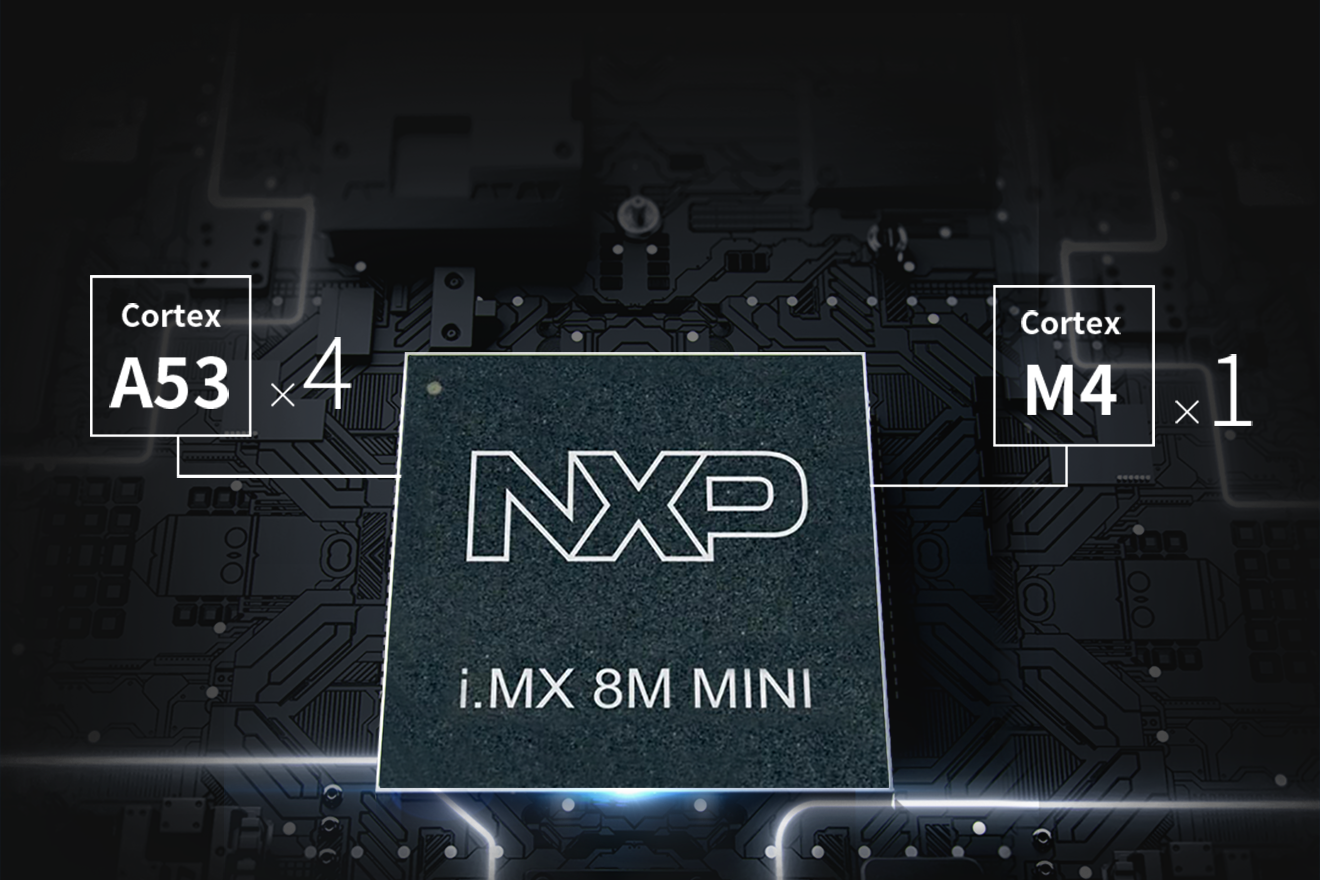

CPU: NXP i.MX8M MINI
Architecture: 4*Cortex-A53+1*Cortex-M4
Frequency: 1.8GHz
RAM: 2GB LPDDR4
Flash: 8GB EMMC (16GB Opt.)

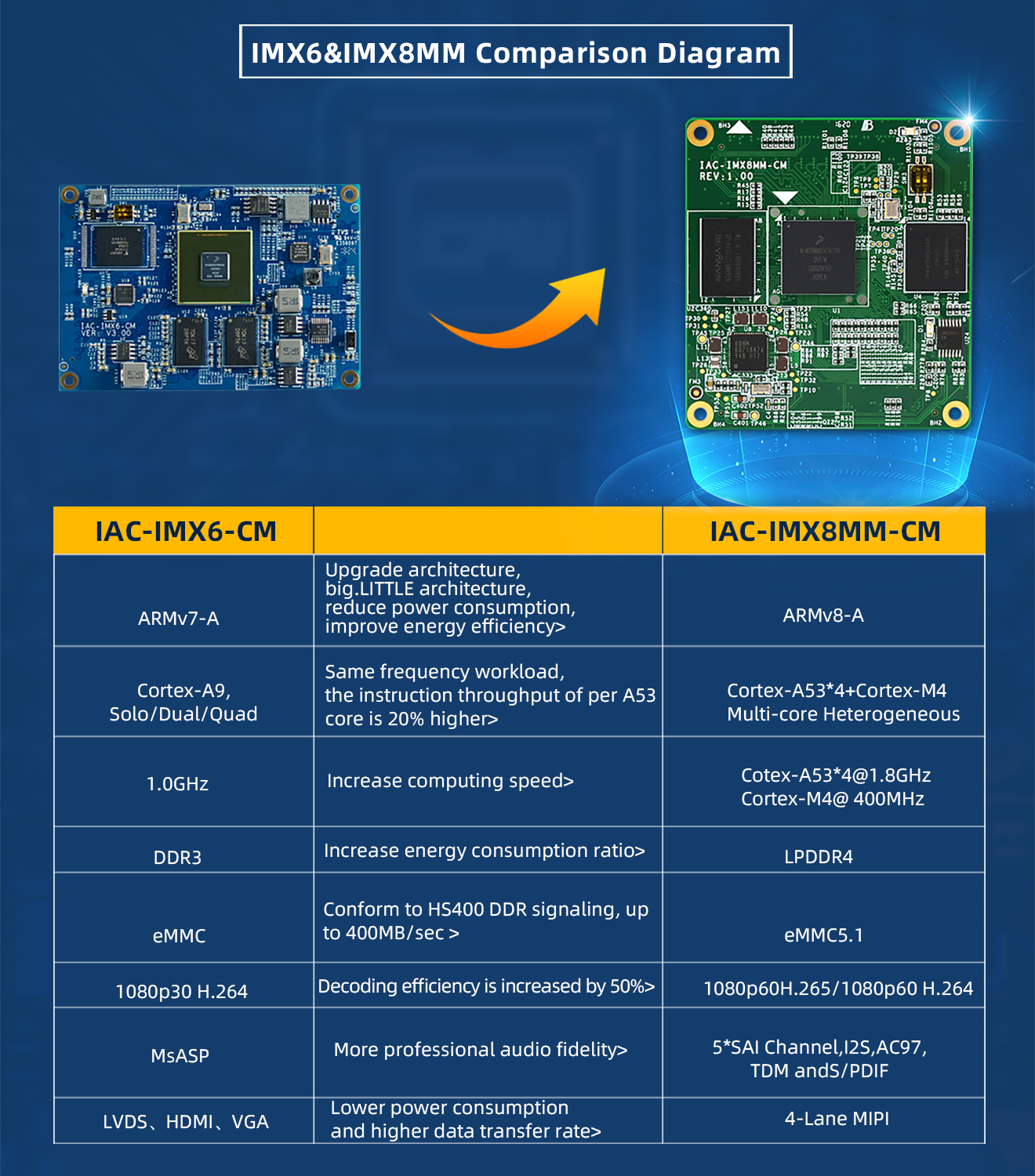

| Parameters | |||
|---|---|---|---|
| CPU | NXP i.MX8M MINI | Architecture | 4*Cortex-A53+1*Cortex-M4 |
| Frequency | 1.8GHz | RAM | 2GB LPDDR4 |
| Flash | 8GB EMMC (16GB Opt.) | UART | 4*RS232, 2*UART Debug |

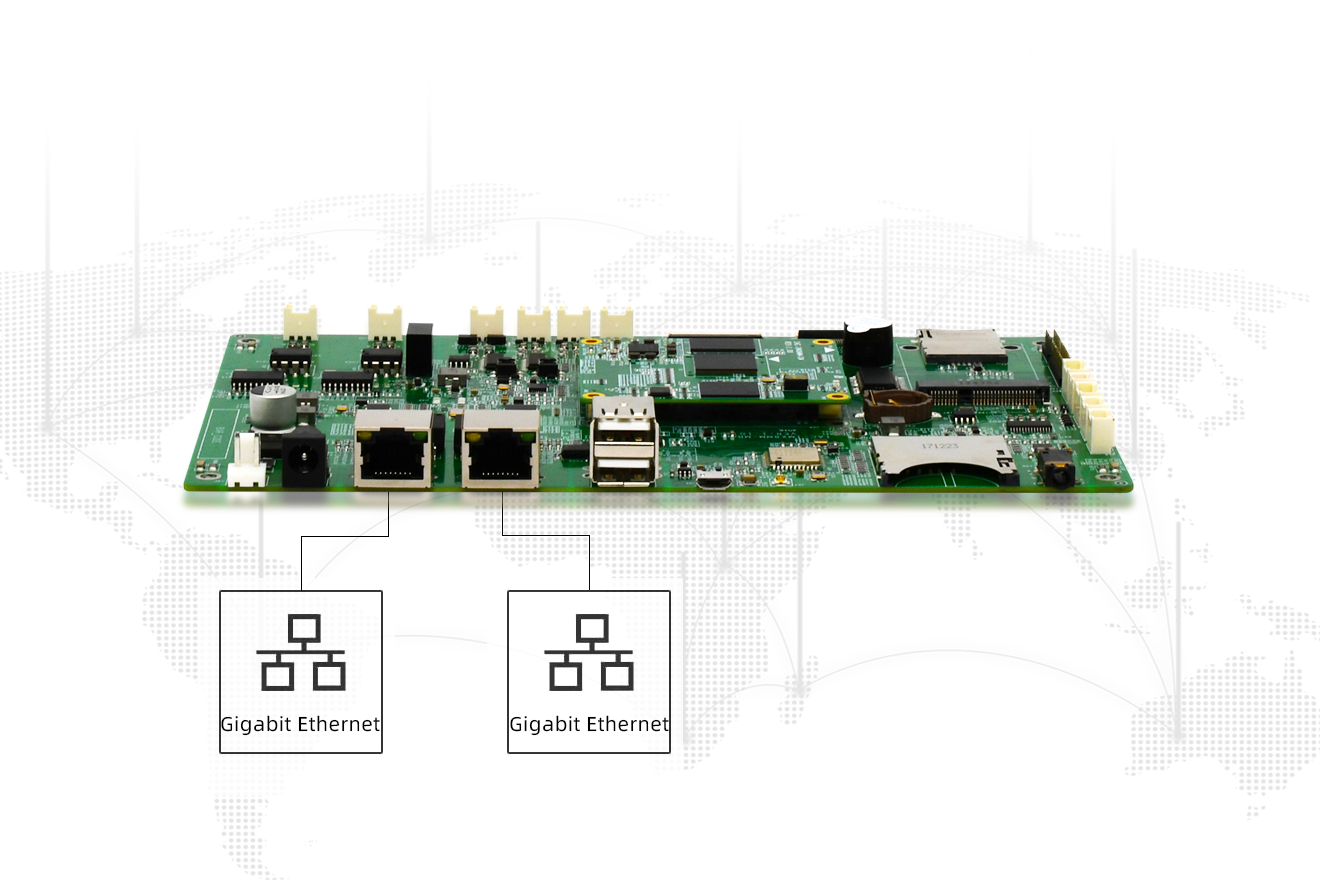

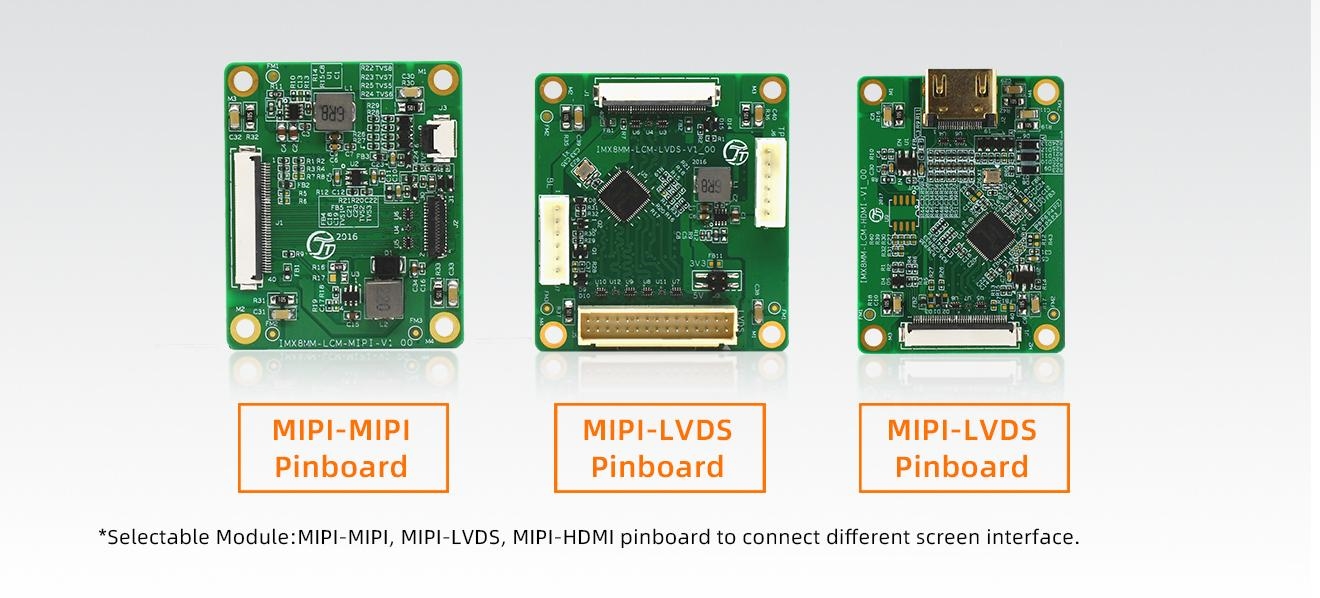

| Ethernet | 2*Gigabit Ethernet | CAN | 2*CAN 2.0 |
| USB | 4*USB 2.0, 1*USB-OTG | I2C | 3*I2C |
| Wi-Fi/BT | Onboard WIFI (AP6236) | Display Interface | 1*4-Lane MIPI, Max.1920 * 1200 |
| Audio | McASP Audio Interface; Binaural Output; MIC Audio Input | Camera | 1*CSI Camera |
| Storage interface | 1*SD Card | Extension Interface | MINI PCI-E Interface; SIM Card ; GPIO Interface |
| Other | Reset Circuit, Watchdog, RTC, Buzzer, JTAG Interface | Power Supply | +12V |

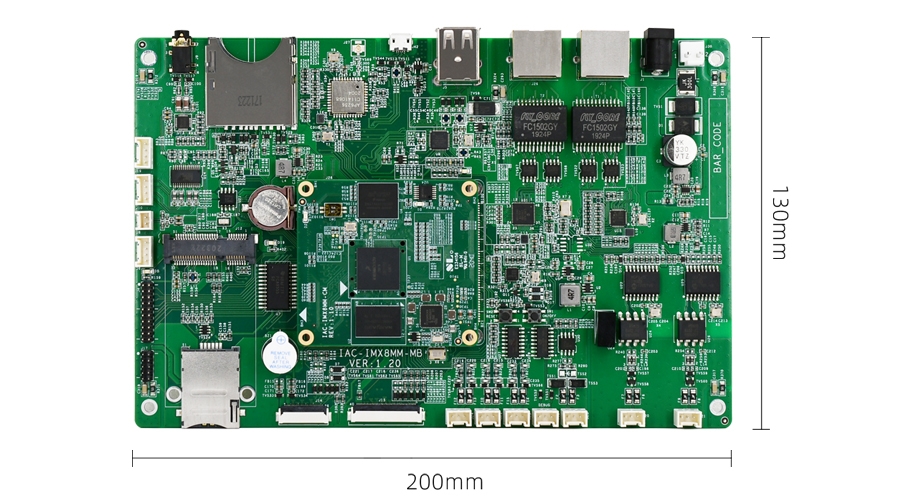

| Operating System | Linux4.14.98+QT5.10.1 ; Android9.0 | Size | SOM Module :60mm*55mm; Carrier Board：200mm*130mm |
| Operating Temperature | 0℃ ~ +70℃ (-40 ~ +85℃ Opt.) | Power Consumption | ≤5W |
| Working Humidity | 5% ~ 95%, non-condensing | ||

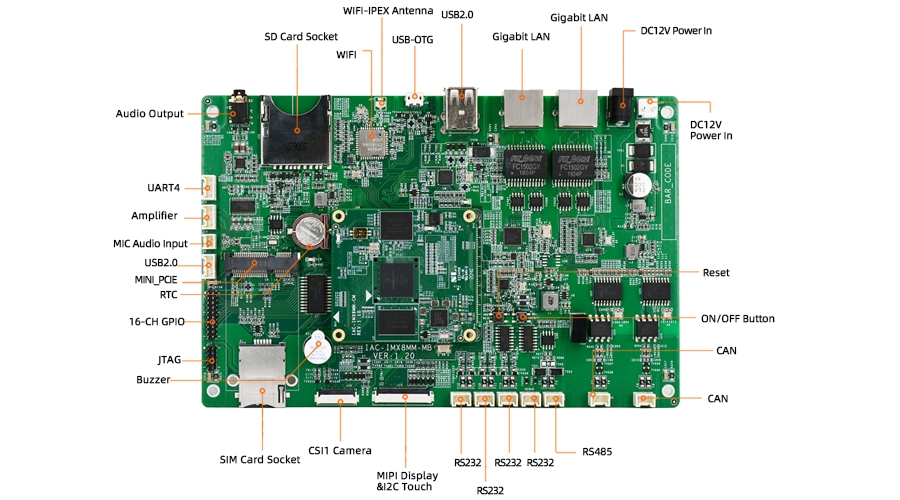

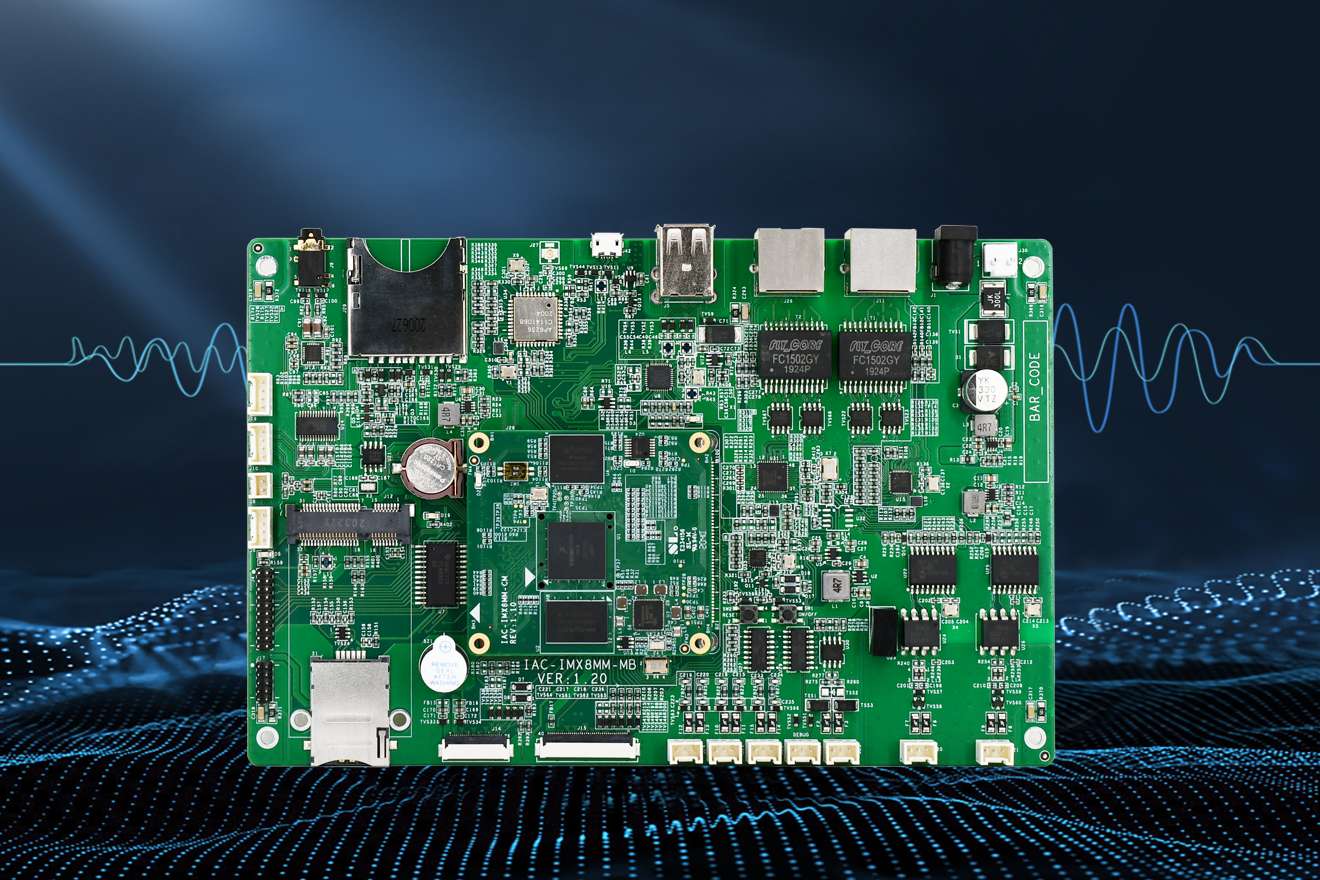

| Specification | |||
|---|---|---|---|
| J1 | DC 12V | J4 | 16*GPIO |
| J5 | USB 2.0 | J6 | USB 2.0 |
| J8 | MIC Audio Input | J9 | Audio Output |
| J10 | Speaker Output | J11 | Gigabit Ethernet |
| J12 | MINI-PCIE | J14 | CSI Camera |
| J15 | 4-Lane MIPI&I2C | J17 | JTAG |
| J18 | RS232 | J19 | UART4 (Debug Port) |
| J20 | CAN | J21 | CAN |
| J22 | RS232（COM3） | J23 | RS485（COM1） |
| J24 | RS232（COM2） | J25 | RS232（COM4） |
| J26 | Gigabit Ethernet | J27 | WiFi-IPEX Antenna |
| J29 | SD Card | J30 | DC12V Power Input |
| J42 | USB-OTG | SW1 | ON/OFF Button |
| SW2 | Reset Button | BZ1 | Buzzer |
| BT1 | RTC | S1 | SIM Card |
| U34 | Wi-Fi Module (AP6236) | ||
