| CPU |
NXP i.MX8M Plus ，Quad ARM® Cortex™-A53 + Cortex-M7 |
Frequency |
Cortex-A53@1.6 GHz, Cortex-M7@800MHz |
| NPU |
2.3Tops |
GPU |
GC7000UL with OpenCL and Vulkan support 16 GFLOPS OpenGL ES 3.0/3.1、 Vulkan、 Open CL 1.2FP、 OpenVG1.1 |
| VPU |
Support 1080p60, H.265/4, VP8, VP9 video decoding; support 1080P60, H.265/4 video codes |
ISP |
Dual Camera ISP (12MP) |
| RAM |
2GB LPDDR4 |
Flash |
8GB eMMC,16GB/32GB eMMC Opt.,（QSPI Flash Selectable) |
| Ethernet |
2 * Gbit/s Ethernet (1x TSN) |
UART |
1 * Cortex-A53 Debug UART; 1 * Cortex-M7 Debug UART;4 x RS232(3 * 3-wire RS232、 1 * 5-wire RS232);1 * RS485 |
| CAN |
2 * CAN-FD |
Wi-Fi |
On board WIFI Module, support 2.4GHz/5GHz Dual -frequency wifi, 802.11a/b/g/b/ac protocol |

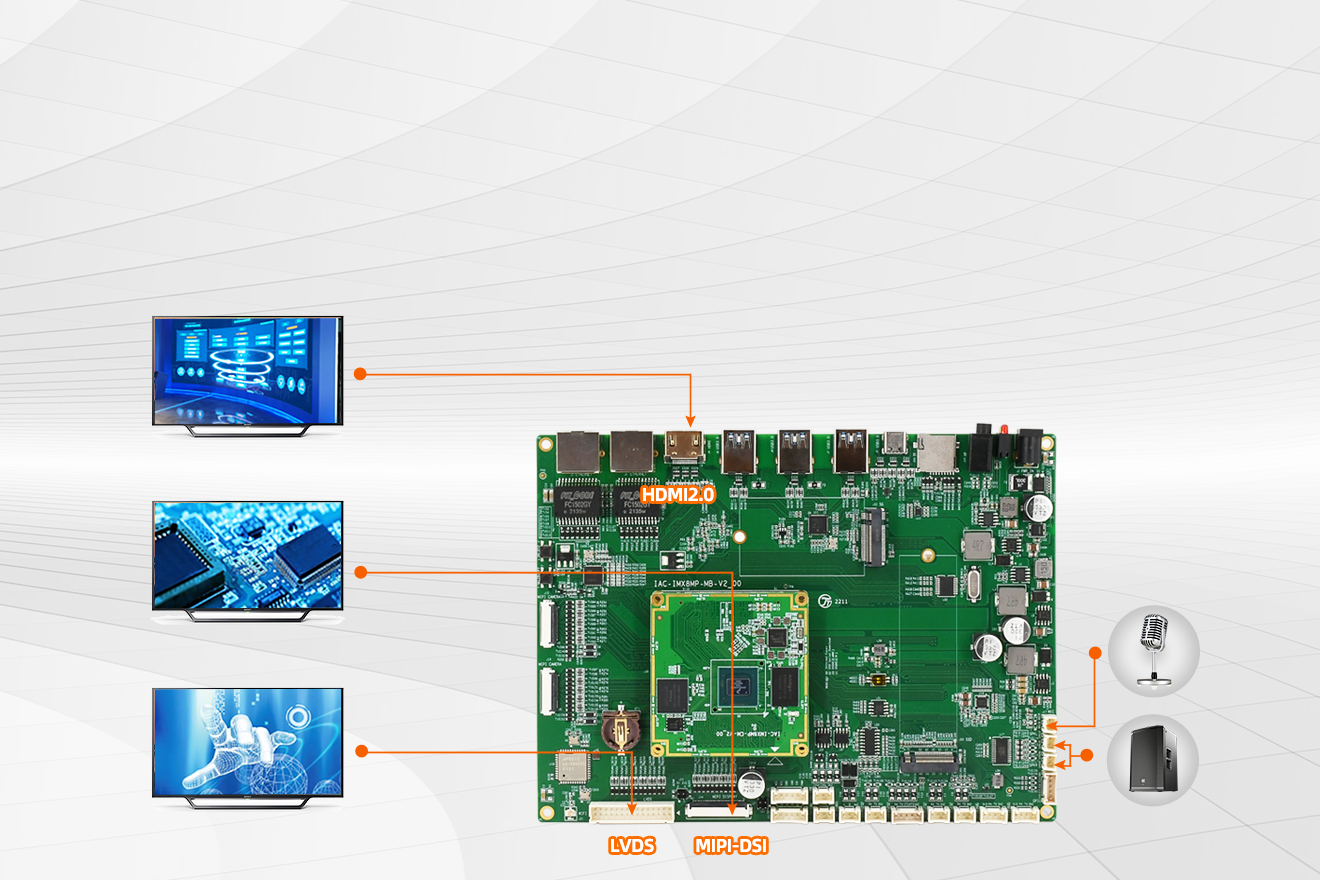

| Display Interface |
1*MIPI-DSI(4-Lane),with resolution of 1920x1080@60; 1*LVDS(Dual-Channel)， with resolution of 1920x1080@60; 1*HDMI(eARC)，with resolution of 1920x1080@60 |
Audio |
2*Speaker amplifier output; dual -channel audio output (Earphone socket); MIC audio input |

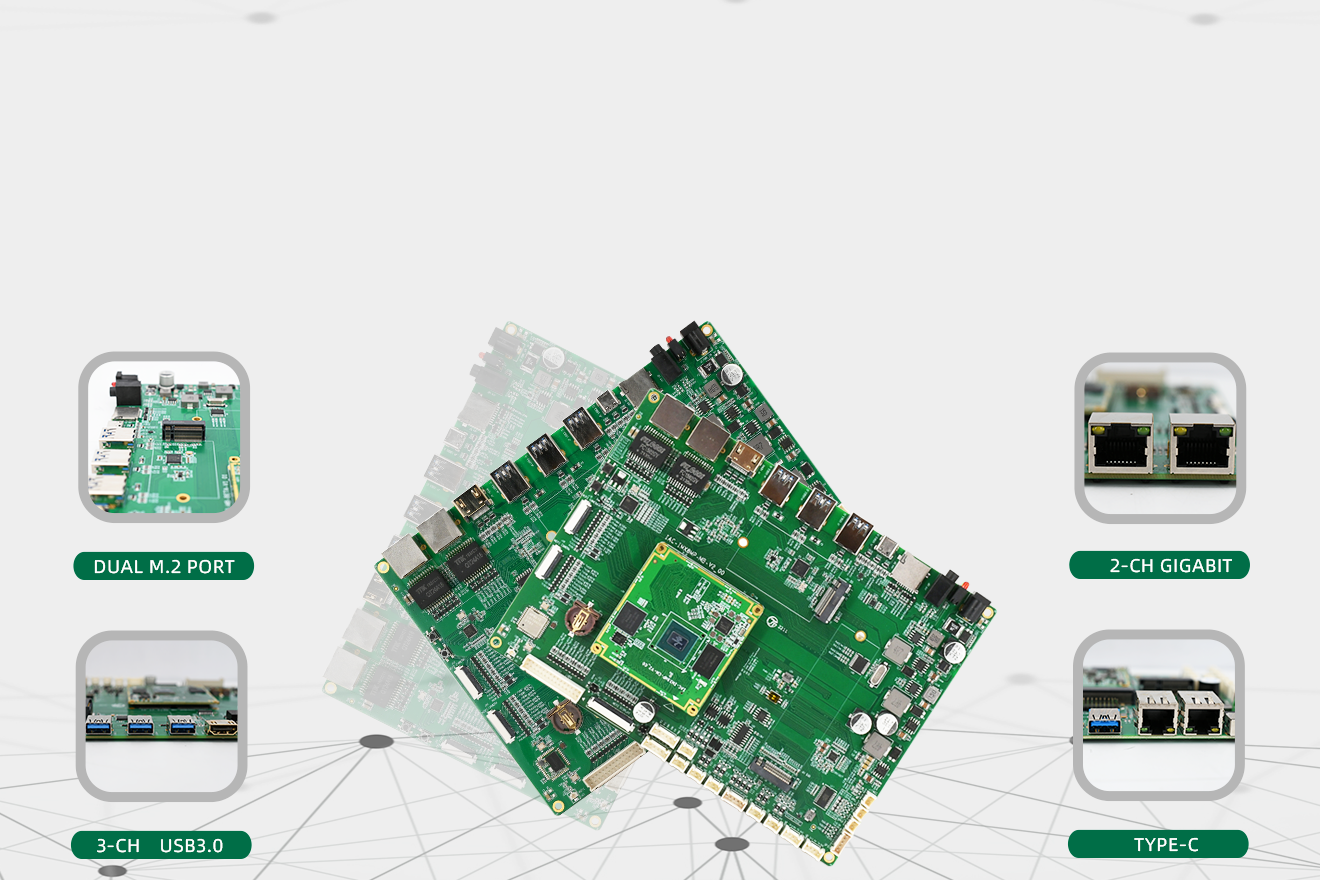

| USB |
3*USB3.0 HOST; 1*USB Type-C |
Camera |
2*MIPI-CSI(4-Lane)，support two cameras simultaneous input |
| Input Interface |
I2C |
Extension Interface |
M.2 M-KEY（To connect SSD）; M.2 B-KEY(To connect 5G module); SIM Card; 3*GPIO(1.8V) |
| Storage interface |
1*TF Card |
Other |
Reserved circuit, Watchdog, Real time clock |
| Power Supply |
+12V |
Size |
Core board:60mm*63mm(8-Layer PCB); Carrier board:200mm*150mm(4-Layer PCB) |
| Power Consumption |
5W |

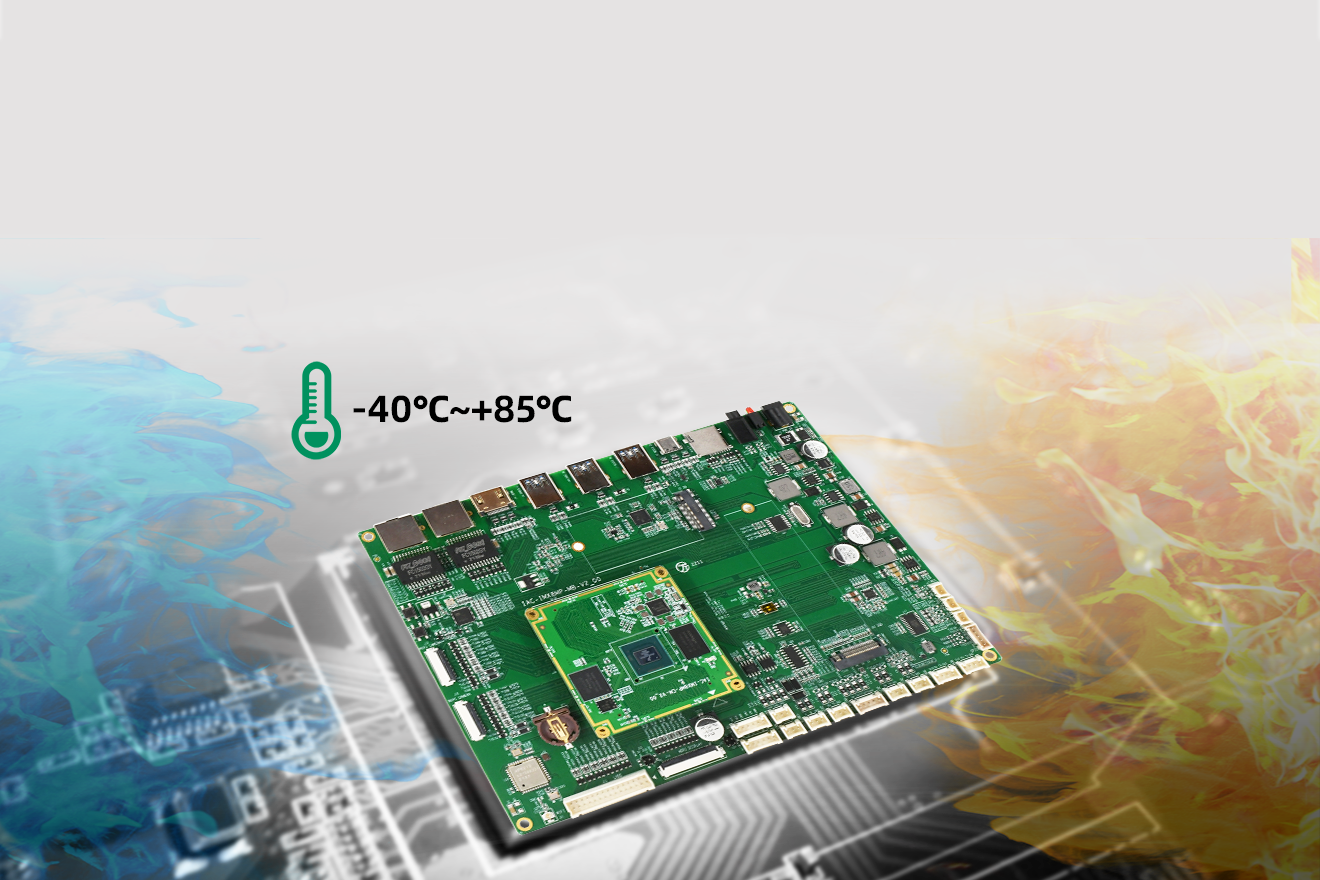

Operating Temperature |
-40℃ ~ +85℃ |
| Working Humidity |
5% ~ 95%, non-condensing |
Operating System |
Linux5.10.35，Android (Unreleased） |
