| CPU |

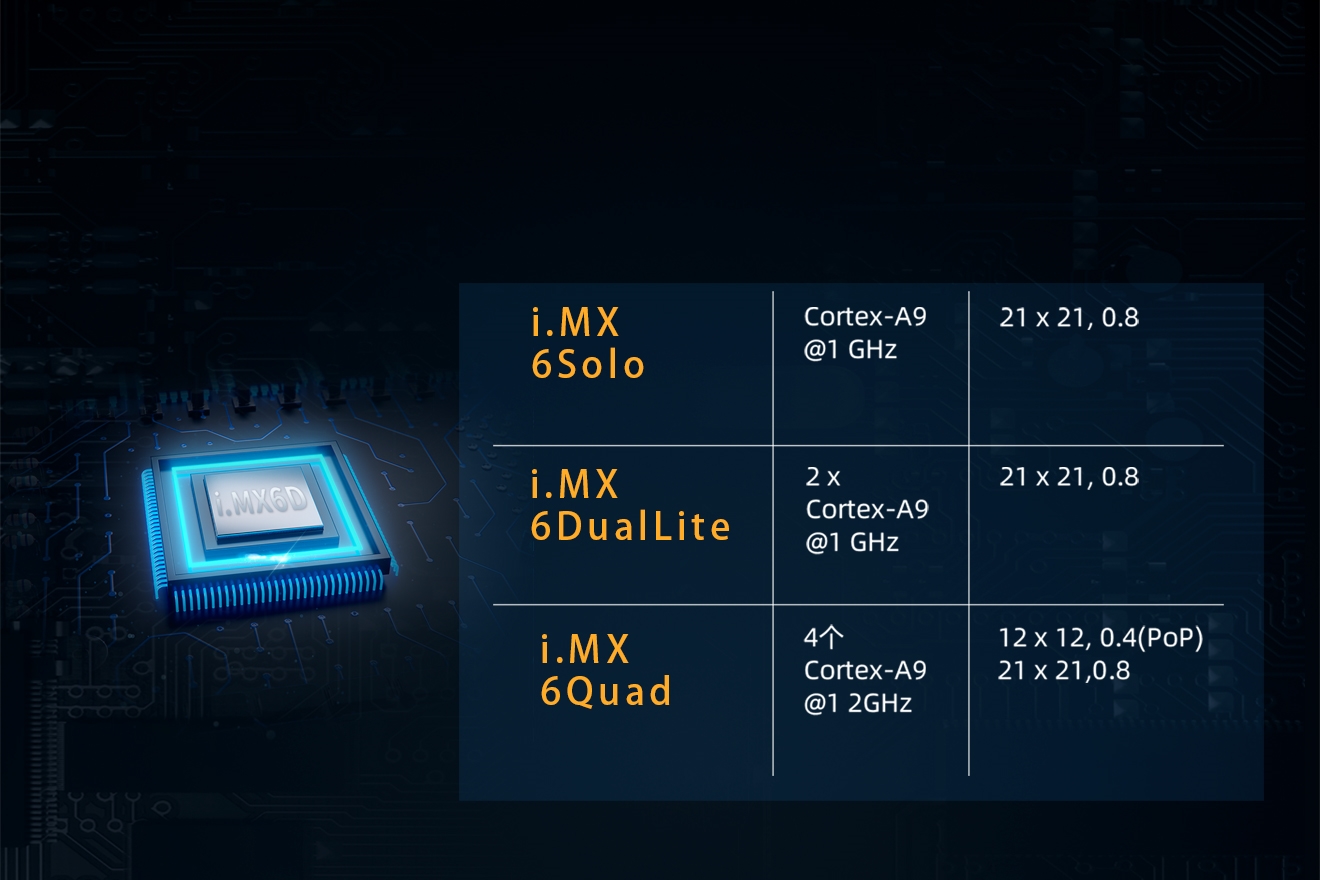

NXP i.MX6, Compatibility with Solo/Dual/Quad Core |
Architecture |
ARM Cortex-A9 |
| Frequency |
1.0GHz |
RAM |
DDR3 SDRAM,4*256MB, total 1GB (2GB optional) |
| Flash |
4GB eMMc (up to 32GB) |
Ethernet |
1*Industrial 10/100/1000Mbps, with ACT, LINK indicator |
| UART |
3*RS232 (1-ch Debug UART, 2-ch RS232 multiuse with RS485) |
CAN |
2*CAN, support CAN 2.0 protocol |
| USB |
1*USB OTG; 4*USB2.0 HOST, including 1-ch USB to connect MINI PCI-e |
Display Interface |
CSI&DSI; 2*LVDS, MAX.1920*1200; HDMI,support HDMI1.4 |
| Audio |
McASP Audio Connector, Dual Audio Output, MIC Audio Input |
Input Interface |
Standard I2C capacitive touch panel port |
| Extension Interface |
MINI-PCIE 2.0; SIM Card;EIM |
Storage interface |
1*SD Card |
| Other |
Reset circuit,Watchdog,RTC,Buzzer, JTAG |
Power Supply |
+12V Power Supply, support +4.75V~+18V wide voltage |
| Size |

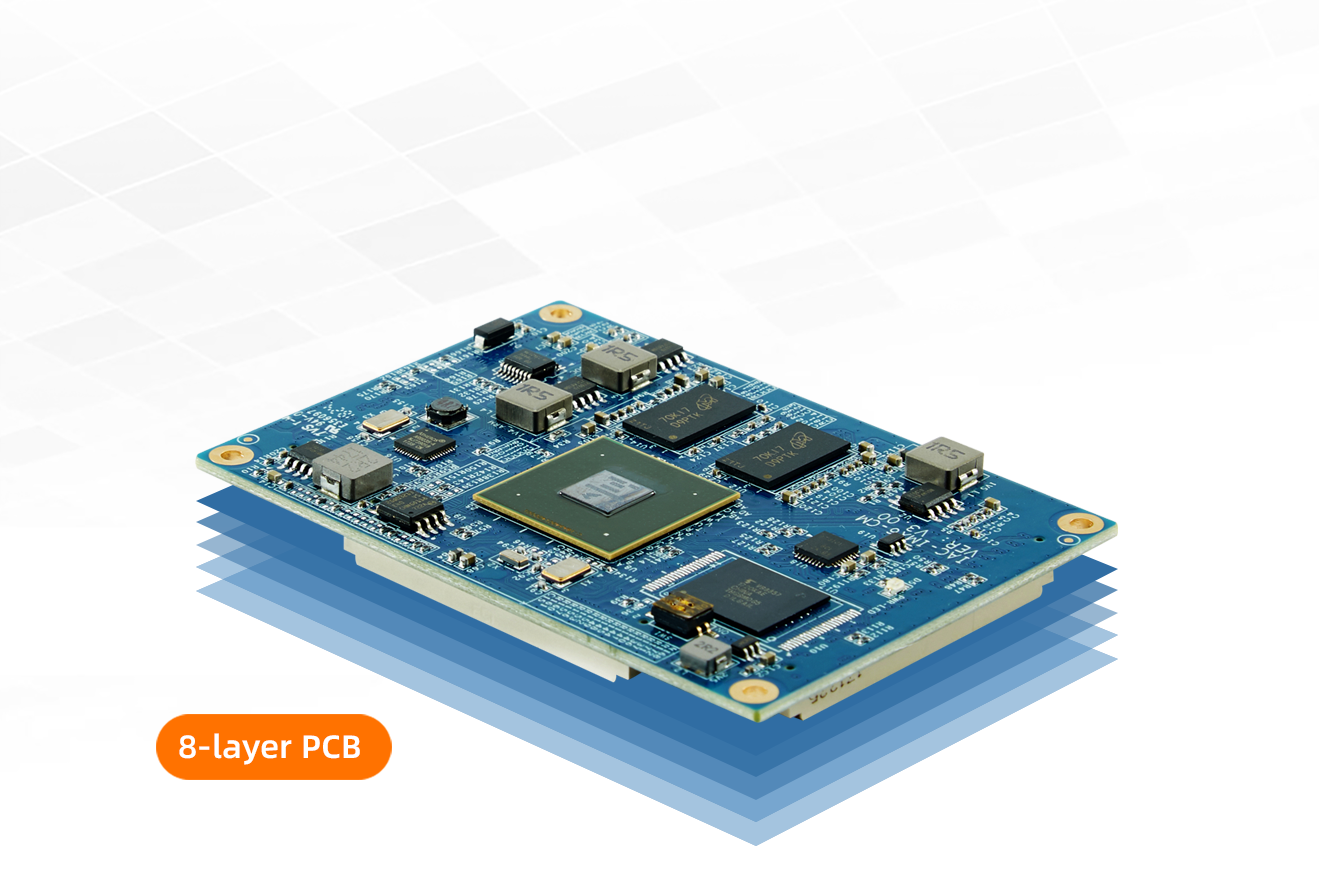

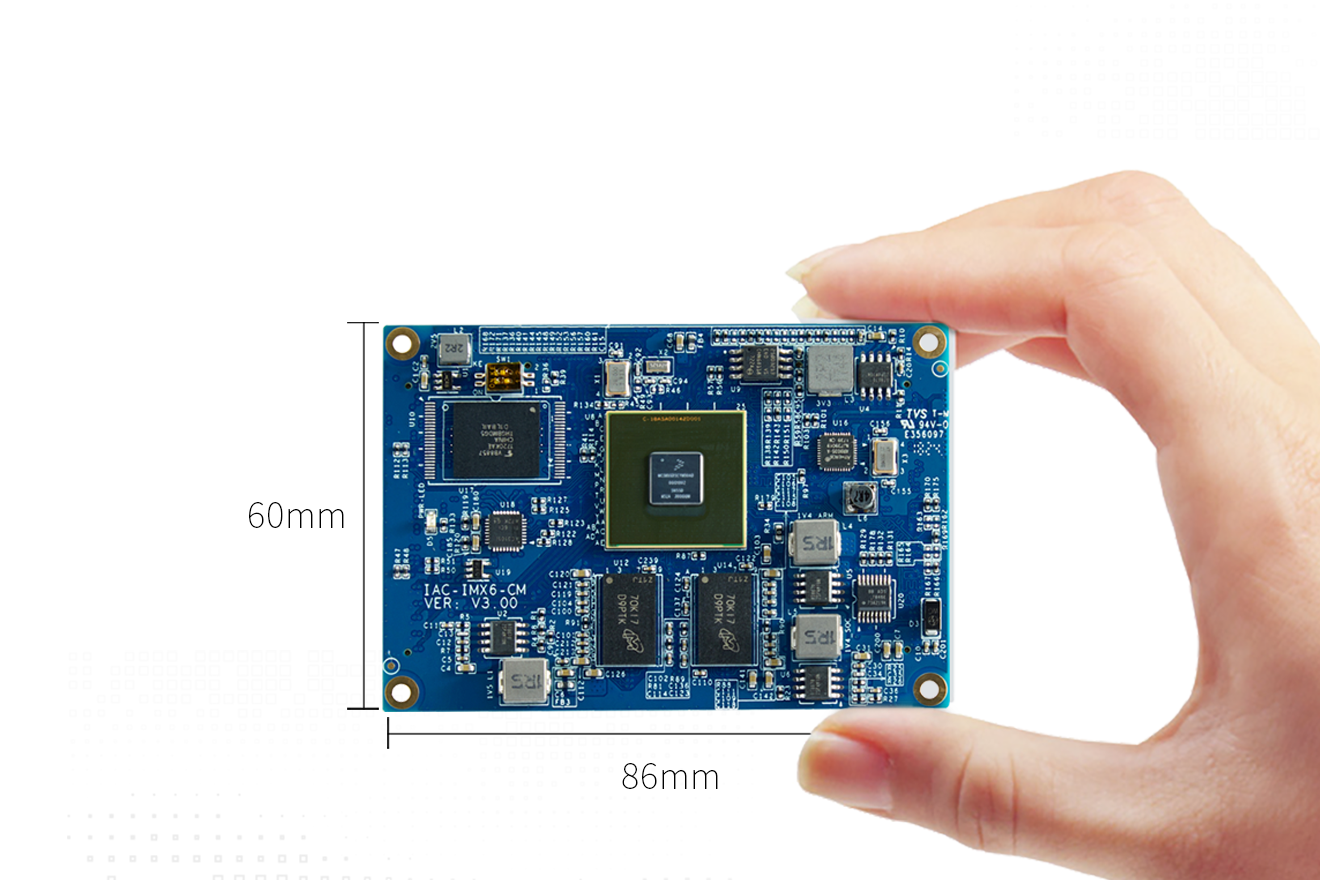

SOM Module:86mm*60mm （8-Layer); Carrier board:160mm*125mm (4-Layer) |
Operating System |
Linux3.0+QT4.8; Android 4.2/4.4 |
| Power Consumption |
≤3W |
Operating Temperature |
-20℃ ~ +70℃ (-40℃~85℃ Opt.) |
| Working Humidity |
5% ~ 95%, non-condensing |
|
|
