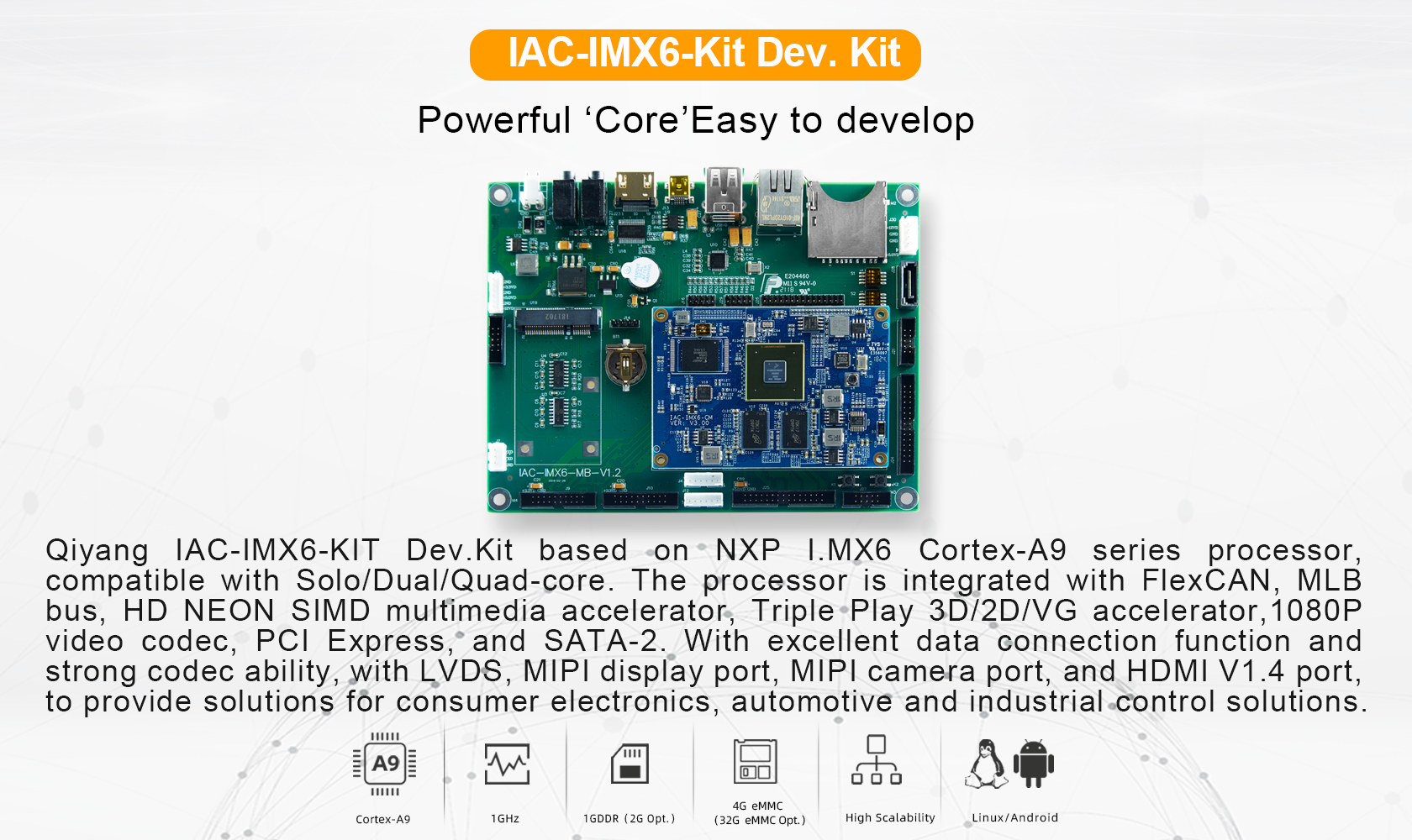

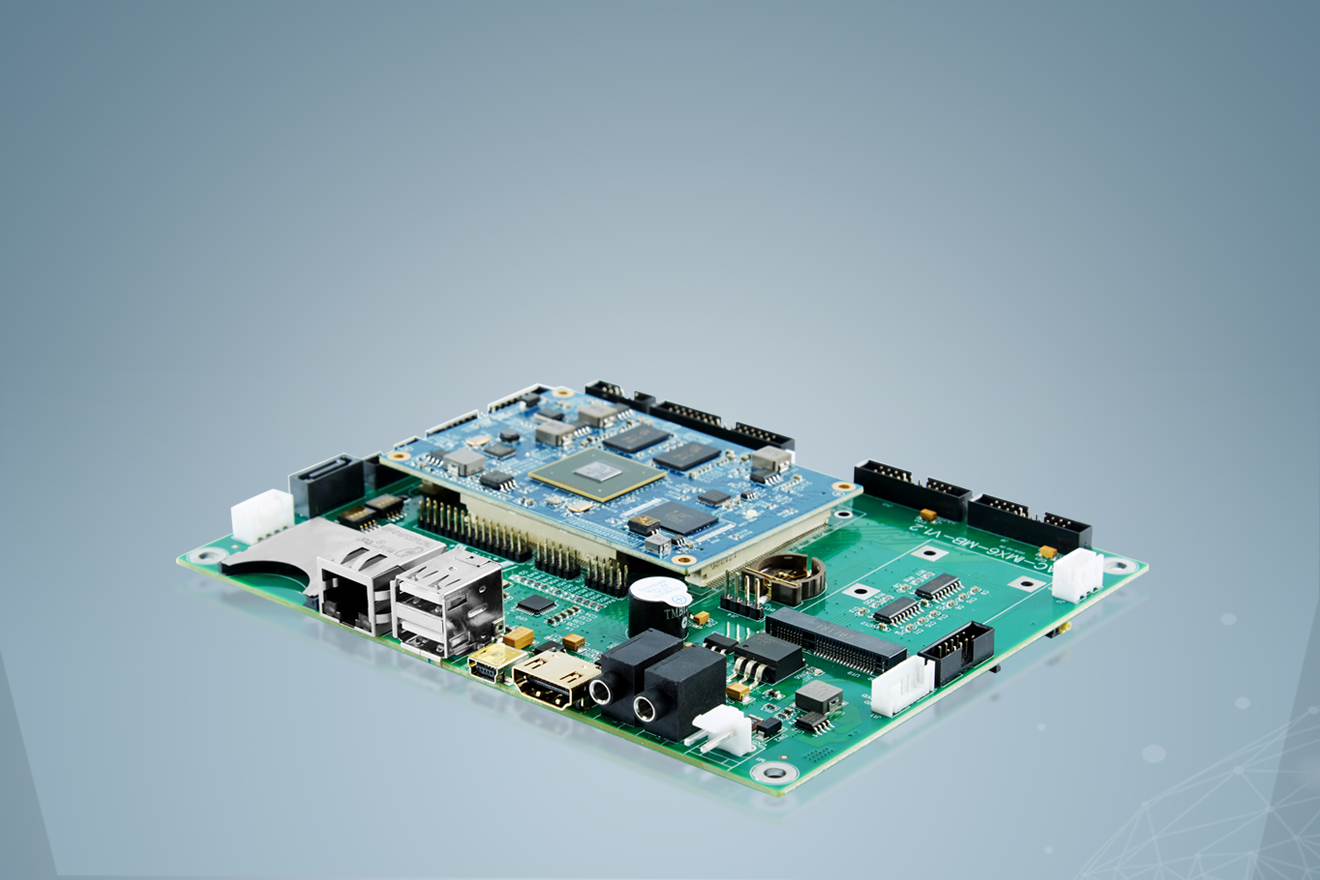

IAC-IMX6-Kit
CPU: NXP i.MX6, Compatibility with Solo/Dual/Quad Core
Architecture: ARM Cortex-A9
Frequency: 1.0GHz
RAM: DDR3 SDRAM,4*256MB, total 1GB (2GB Opt.)
Flash: 4GB eMMc (Up to 32GB)
| Parameters | |||
|---|---|---|---|
| CPU | NXP i.MX6, Compatibility with Solo/Dual/Quad Core | Architecture | ARM Cortex-A9 |
| Frequency | 1.0GHz | RAM | DDR3 SDRAM,4*256MB, total 1GB (2GB Opt.) |
| Flash | 4GB eMMc (Up to 32GB) | Ethernet | 1*Industrial 10/100/1000Mbps, with ACT, LINK indicator |
| UART | 3*RS232 (1-ch debug UART, 2-ch RS232 multiuse with RS485) | CAN | 2*CAN, supports CAN 2.0 protocol |
| USB | 1*USB OTG,4*USB2.0 HOST; Including 1-ch USB to connect MINI PCI-e | Display Interface | CSI&DSI; 2*LVDS, MAX.1920*1200; HDMI,support HDMI1.4 |
| Audio | McASP Audio Connector, Dual Audio Output, MIC Audio Input | Input Interface | Standard I2C capacitive touch panel port |
| Extension Interface | MINI-PCIE 2.0; SIM Card; SIM Card; EIM | Storage interface | 1*SD Card |
| Other | Reset Circuit, Watchdog, RTC, Buzzer, JTAG | Power Supply | +12V Power Supply, support +4.75V~+18V wide voltage |

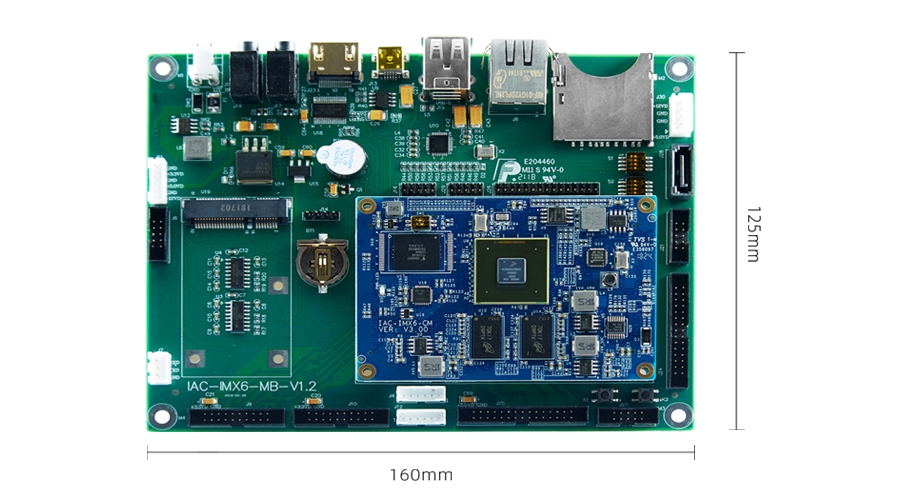

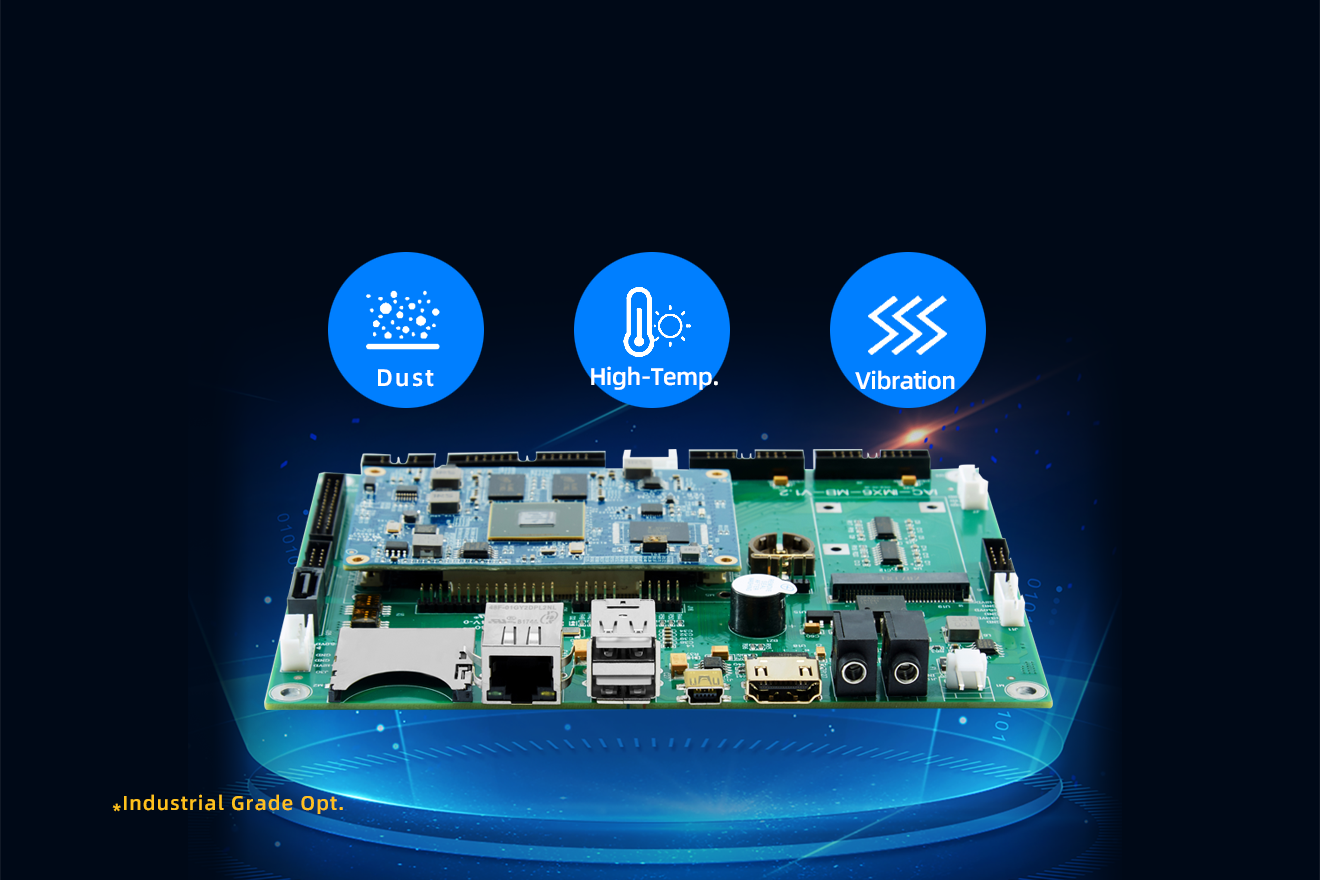

| Size | SOM Module:86mm*60mm (8- Layer); Carrier Board:160mm*125mm (4-Layer) | Operating System | Linux3.0+QT4.8; Android 4.2/4.4 |
| Power Consumption | ≤3W | Operating Temperature | -20℃ ~ +70℃ (-40℃~8540℃ Opt.) |
| Working Humidity | 5% ~ 95%, non-condensing | ||

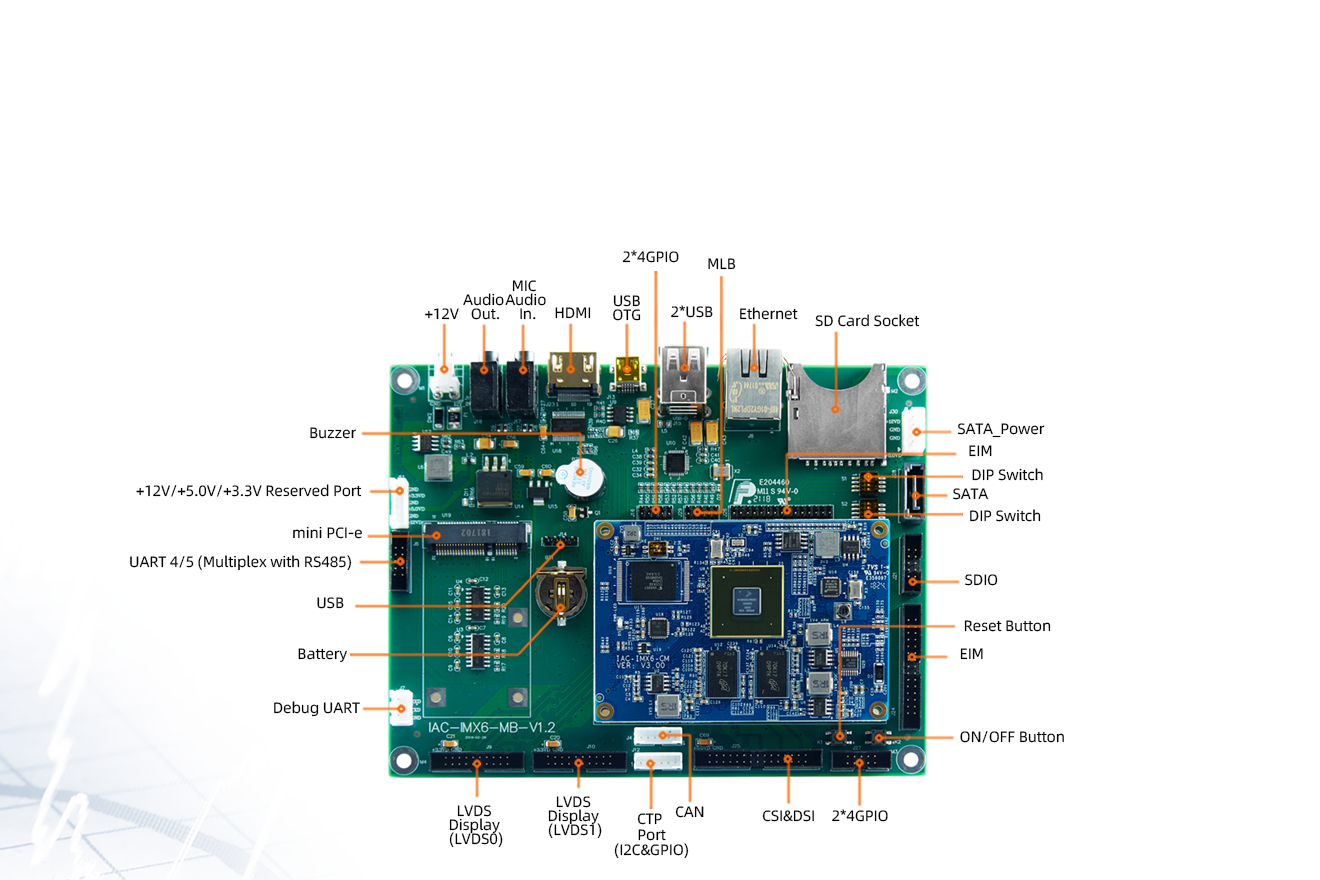

| Specification | |||
|---|---|---|---|

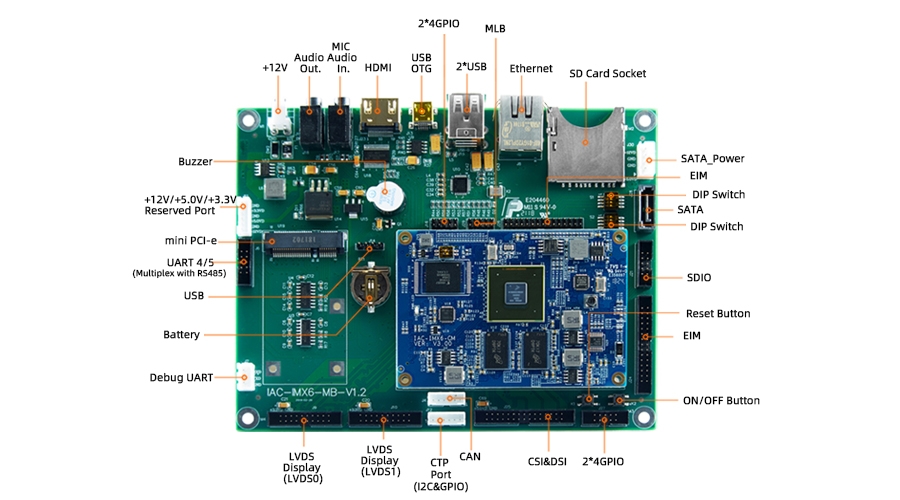

| J4 | CAN | J6 | COM4/5 (Multiplex with RS485) |
| J7 | Debug Serial Port | J8 | Gigabit Ethernet |
| J9 | LVDS (LVDS0) | J10 | LVDS (LVDS1) |
| J11 | +12V/+5V/+3.3V Power Supply | J12 | Capacitive Touch Screen Interface (I2C & GPIO interface) |
| J13 | USB OTG | J14 | USB, to connect external module |
| J15 | 2*USB | J16 | 2*4GPIO |
| J17 | MIC Audio Input | J18 | Audio Output |
| J19 | +12V Power Supply | J20 | SD Card |
| J21 | SDIO | J23 | HDMI |
| J24 | EIM | J25 | CSI&DSI |
| J26 | EIM | J27 | 2*4GPIO |
| J28 | SATA | J29 | MLB |
| J30 | SATA Hard Disk Drive Power Supply | U19 | MINI-PCIE |
| S1 | Dial Switch | S2 | Dial Switch |
| BT1 | System Clock Power Supply (+ 3.0V) | BZ1 | Buzzer |
| K1 | Reset Button | K2 | ON/OFF Button |
