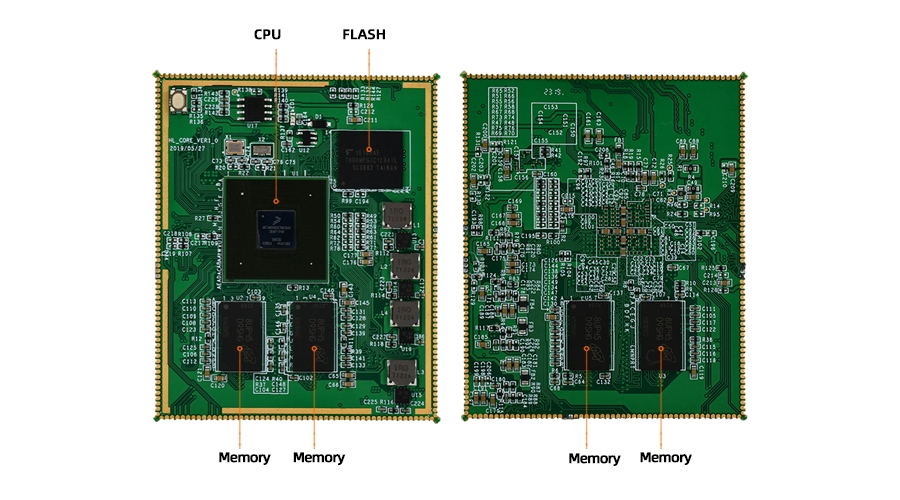

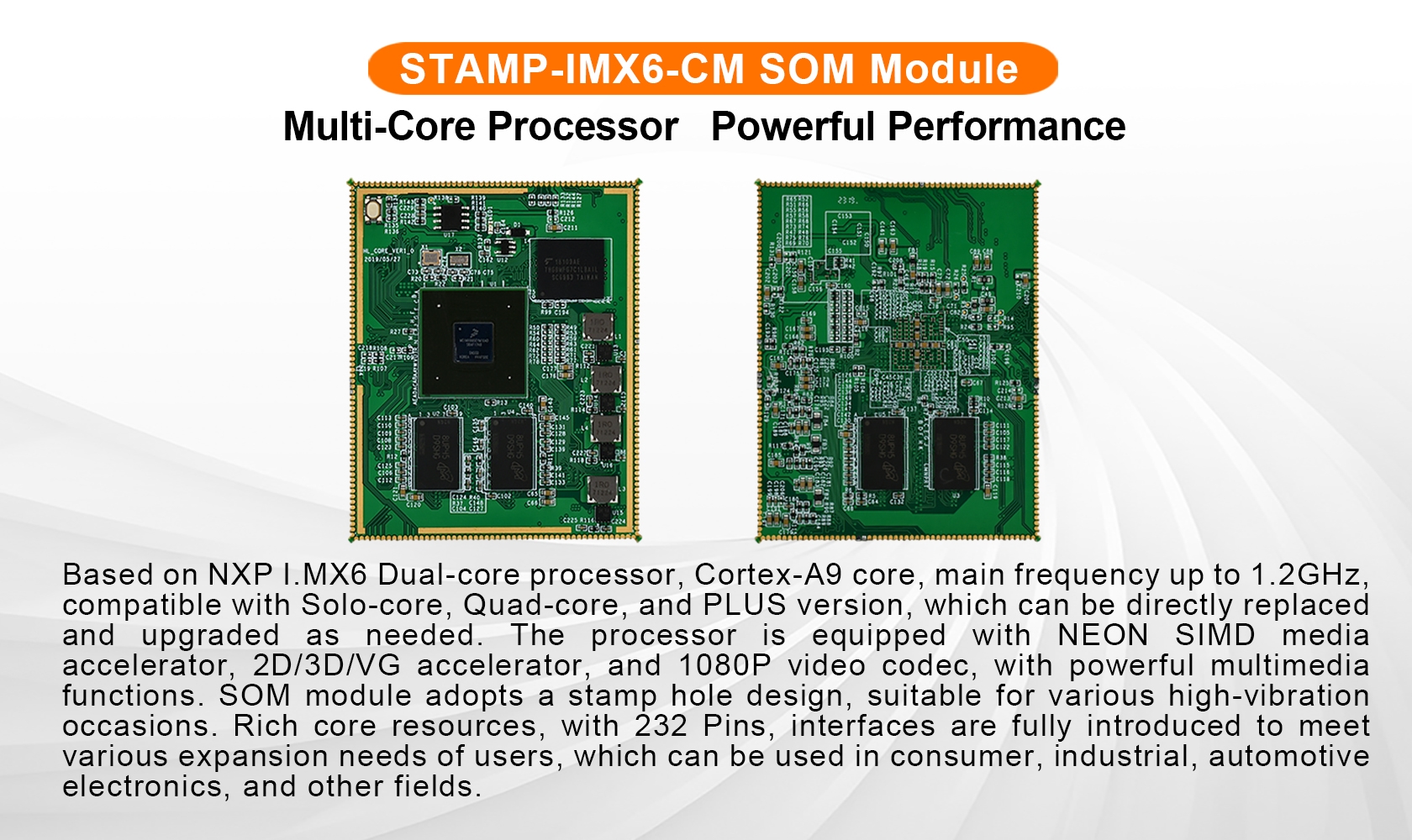

STAMP-IMX6-CM

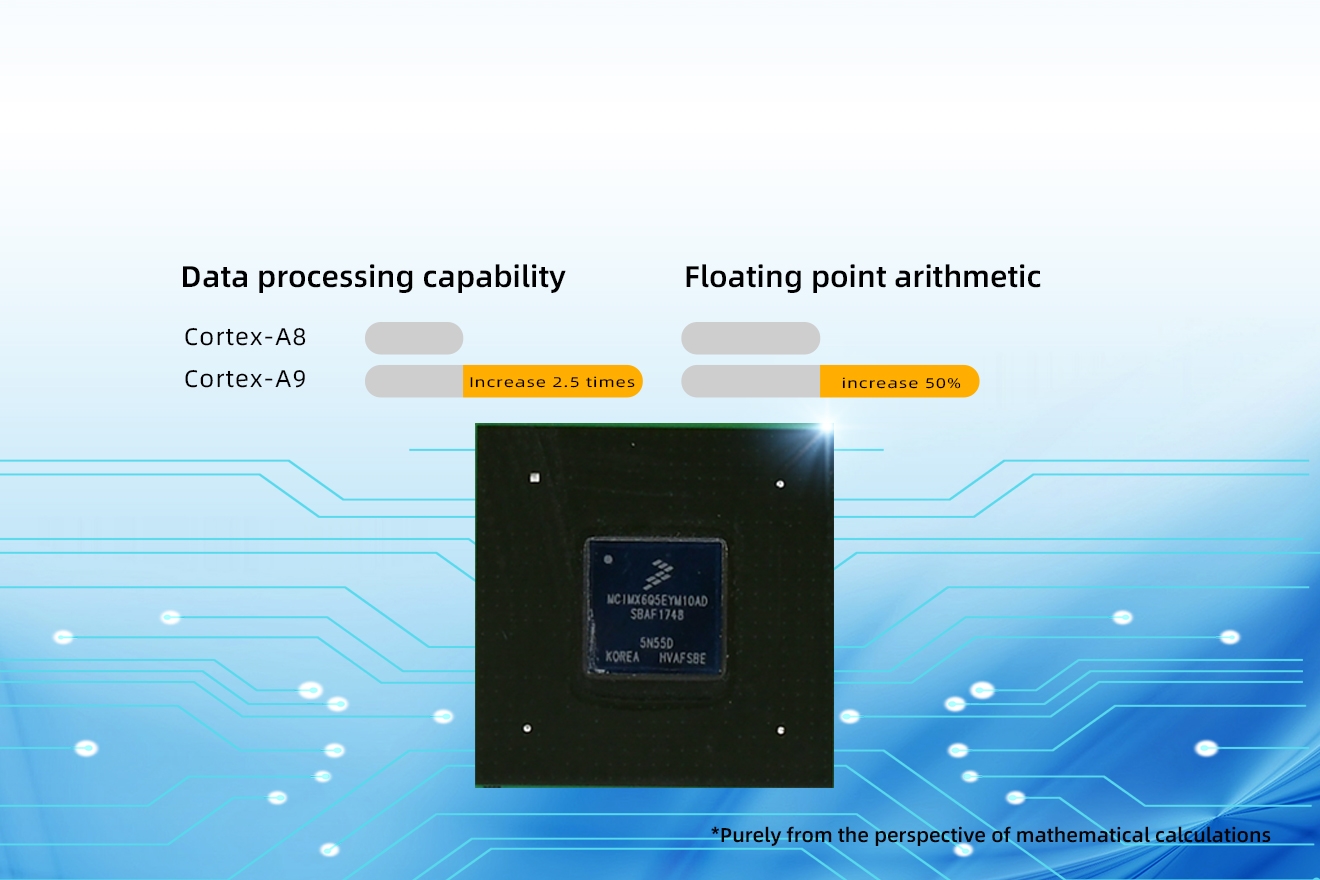

CPU: NXP i.MX6Dual, Compatible with Solo Core, Dual Core, Quad Core
Architecture: ARM Cortex-A9
Frequency: 1.0 Ghz
RAM: 2GB DDR (256MB/512MB/1GB Opt.)
Flash: 16GB EMMC (4GB/8GB Opt.)
| Parameters | |||
|---|---|---|---|
| CPU | NXP i.MX6Dual, Compatible with Solo Core, Dual Core, Quad Core | Architecture | ARM Cortex-A9 |
| Frequency | 1.0 Ghz | RAM | 2GB DDR (256MB/512MB/1GB Opt.) |
| Flash | 16GB EMMC (4GB/8GB Opt.) | Power Supply | 5V |

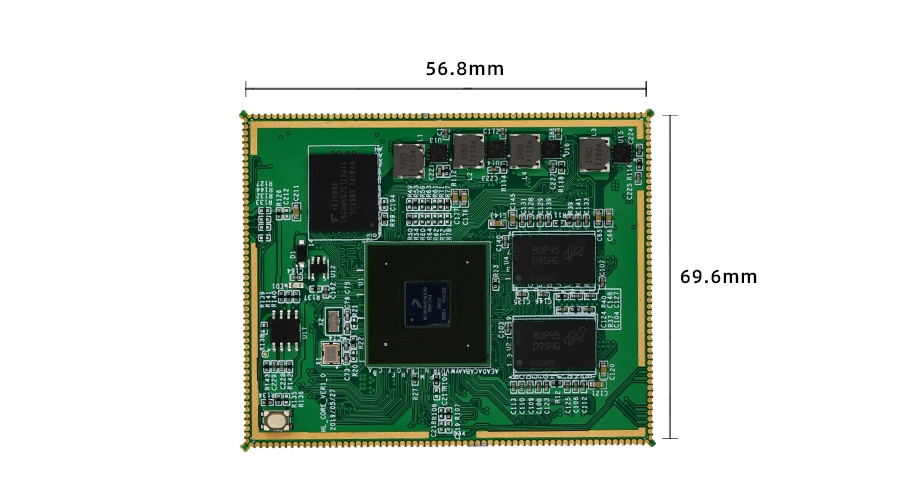

| Size | 56.8mm*69.6mm | Connector | Stamp Hole Connection |
| Pin spacing | 1.066mm | Pad size | 2.032mm*0.863mm /1.778mm*0.863mm |
| Pin quantity | 232 PINS | Process | 8-Layer Immersion Gold PCB |
| Plate | High TG Material | Display Interface | CSI&DSI; 2*LVDS,MAX.1920*1200; HDMI |
| UART | 3*RS232 | USB | 1*USB OTG; 4*USB HOST |
| PWM | 4*PWM | I2C | 3*I2C |
| SPI | 5*SPI | SDIO | SDIO |
| PCIE | 1*PCIE2.0 | Audio | I2S interface, supports a 3-way digital voice input |
| Camera | MIPI CSI | GPIO | Reserved parts of GPIO signal |

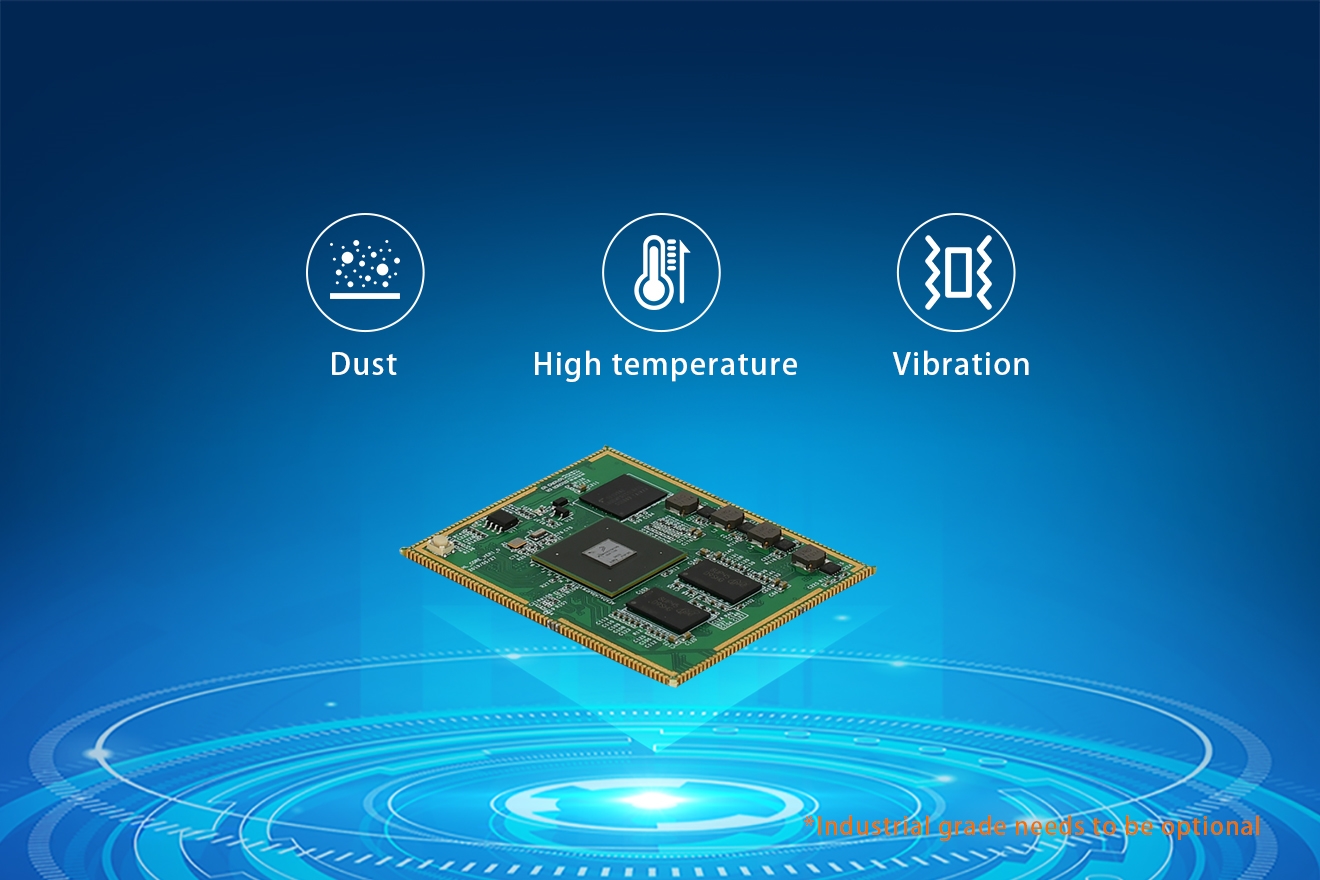

| Input voltage | 5V | Operating Temperature | -20℃~+70℃ (-40℃~85℃ Opt.) |
| Working Humidity | 5% ~ 95%,non-condensing | ||
