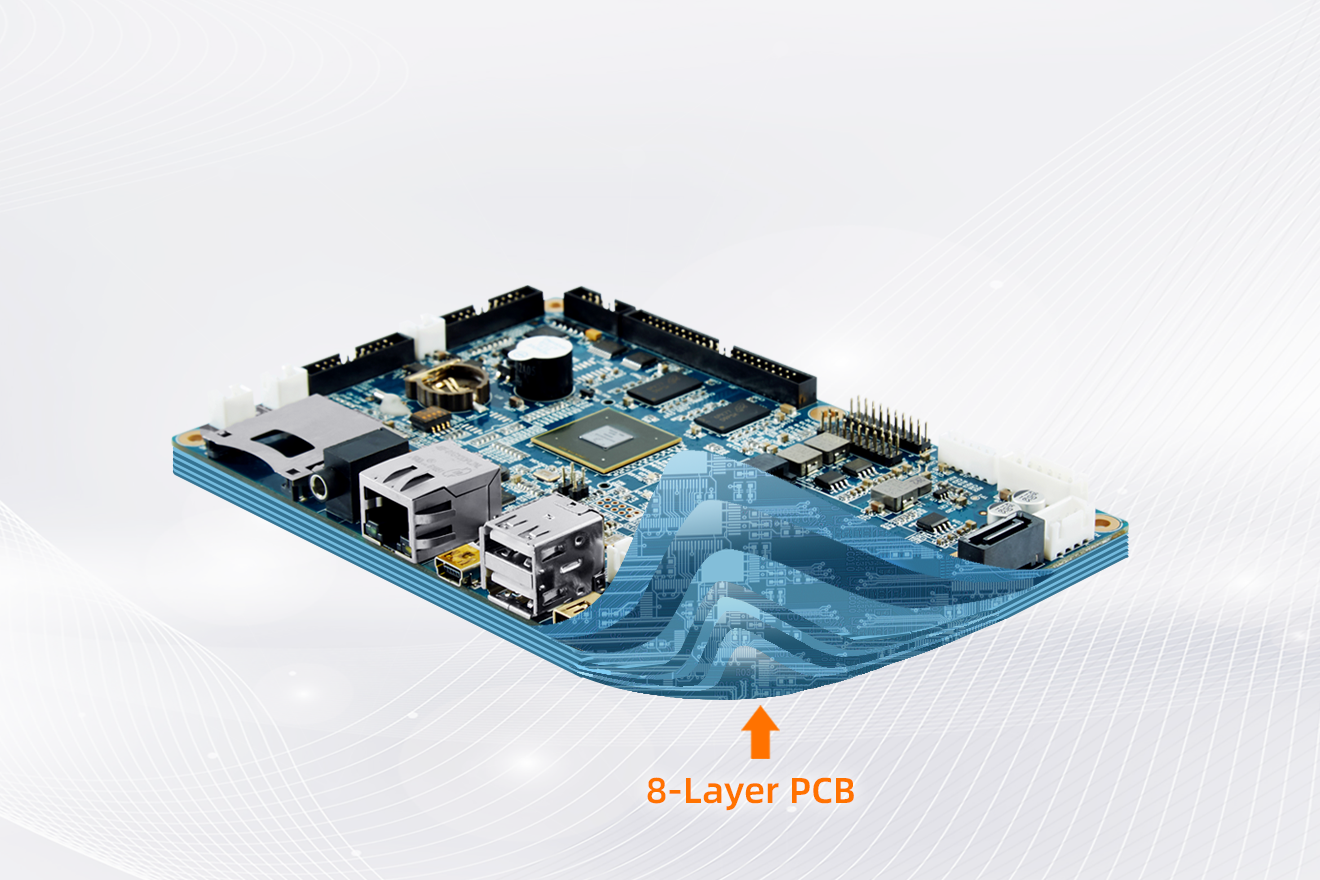

QY-IMX6S

CPU: NXP i.MX6D
Architecture: ARM Cortex-A9
Frequency: 1.0GHz
RAM: DDR3 SDRAM, 4*256MB, total 1GB
Flash: 4GB EMMC
Technical Support
Parameters
CPU NXP i.MX6D Architecture ARM Cortex-A9
Frequency 1.0GHz RAM DDR3 SDRAM, 4*256MB, total 1GB
Flash 4GB EMMC Ethernet AR8035 Network Chip, adopt RGMII mode, support 10M/100M/1000M)
UART 5*RS232 (1*Debug, 2*RS232 Compatible with RS485) CAN 2*CAN, support CAN2.0, 1*TTL Output, 1*CAN output
USB 1*USB OTG, 4*USB HOST (Including 1*USB connects to MIN_PCIE Interface) I2C Standard I2C Capacitive Panel
Camera CAMERA Interface, standard interface support OV5642 camera module Display Interface TFT-LCD MAX.1920 * 1200; VGA; 2*LVDS, MAX.1920*1200; HDMI, support HDMI 1.4
Audio McASP Audio Interface; Binaural Output; MIC Audio Input Input Interface 4-Wire Resistive Touch Panel
Extension Interface MINI_PCIE 2.0; SIM Card Storage interface 1*SD Card; 1*SATA Hard Disk Interface, SATAII Standard, speed up to 3.0Gbps
Other Reset Circuit, Watchdog, RTC, Buzzer, JTAG interface Power Supply +12V Power Supply, supports +4.75V~+18V Wide Range Voltage Supply
Operating System Linux/Android Size 160mm*105mm
Power Consumption ≤3W Operating Temperature -20℃ ~ +70℃ (-40 ~ +85℃ Opt.)
Working Humidity 5% ~ 95%, non-condensing
Technical Support
Specification

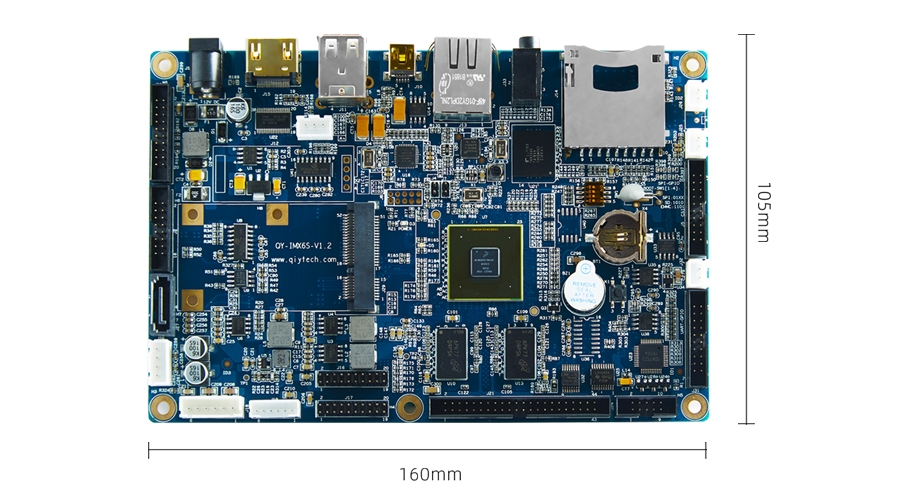

J1 +12 Power Input J2 Serial Port & CAN
J4 BOOT Mode Selection J5 SPI & 2*4GPIO
J7 BOOT Mode Selection J6 Debug Port
J8 JTAG Debug J10 USB OTG
J11 2*USB HOST J12 USB, support external module
J13 Gigabit Ethernet J14 SD Card
J15 HDMI J16 LVDS
J17 LVDS J18 LCD Power Supply
J19 Capacitive Touch Screen Interface J21 LCD_TTL
J22 CAMERA J24 VGA
J25 MIC Audio Input J26 Audio Output
J27 SATA J28 SATA Hard Drive Power Interface
J29 MINI-PCIE J30 SIM Card
J31 RS485 & GPIO J32 +5V Power Output
J33 Audio Output SW1 Dial Switch
BT1 System Clock Power upply (+ 3.0V) BZ1 Buzzer
K1 Reset Button
