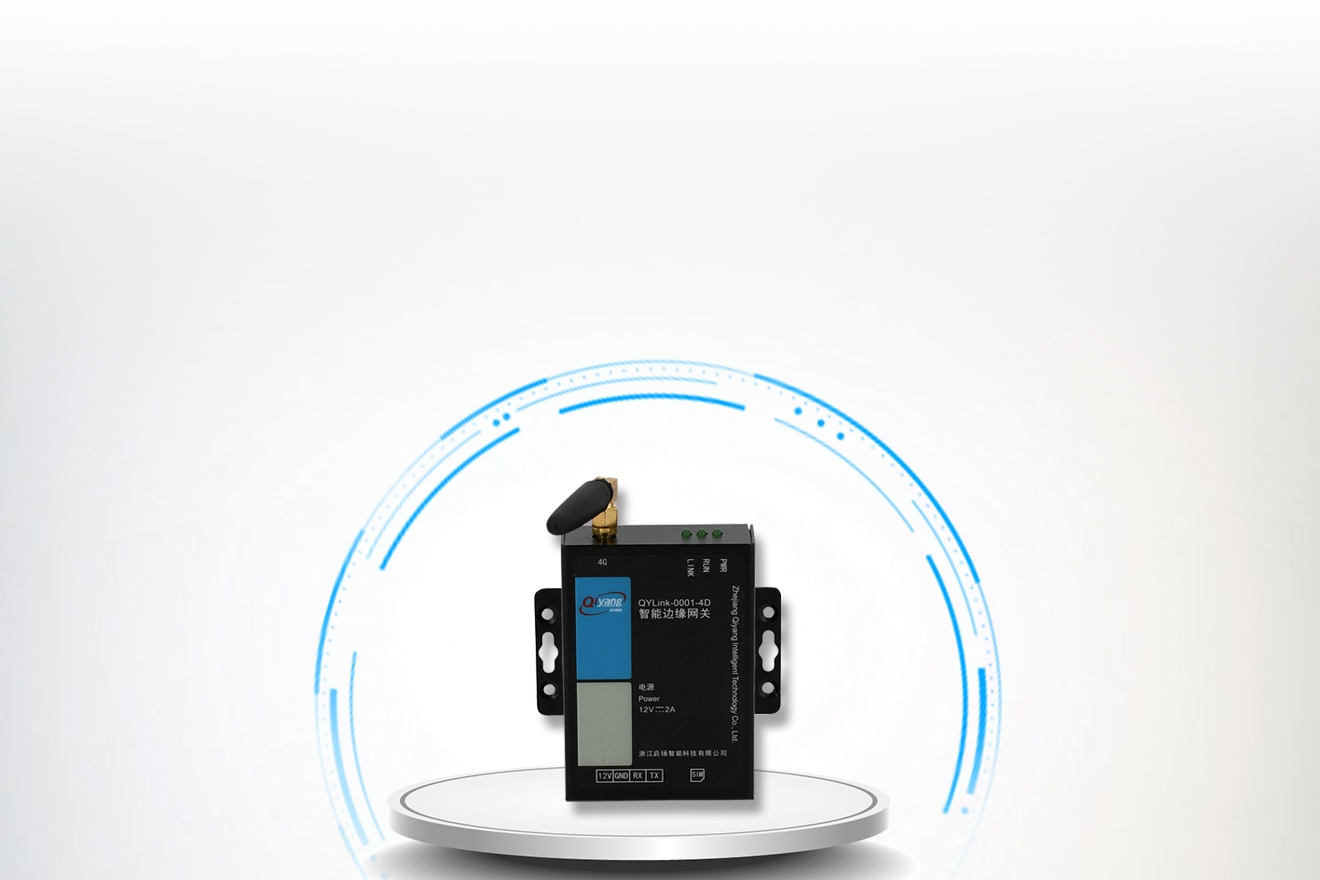

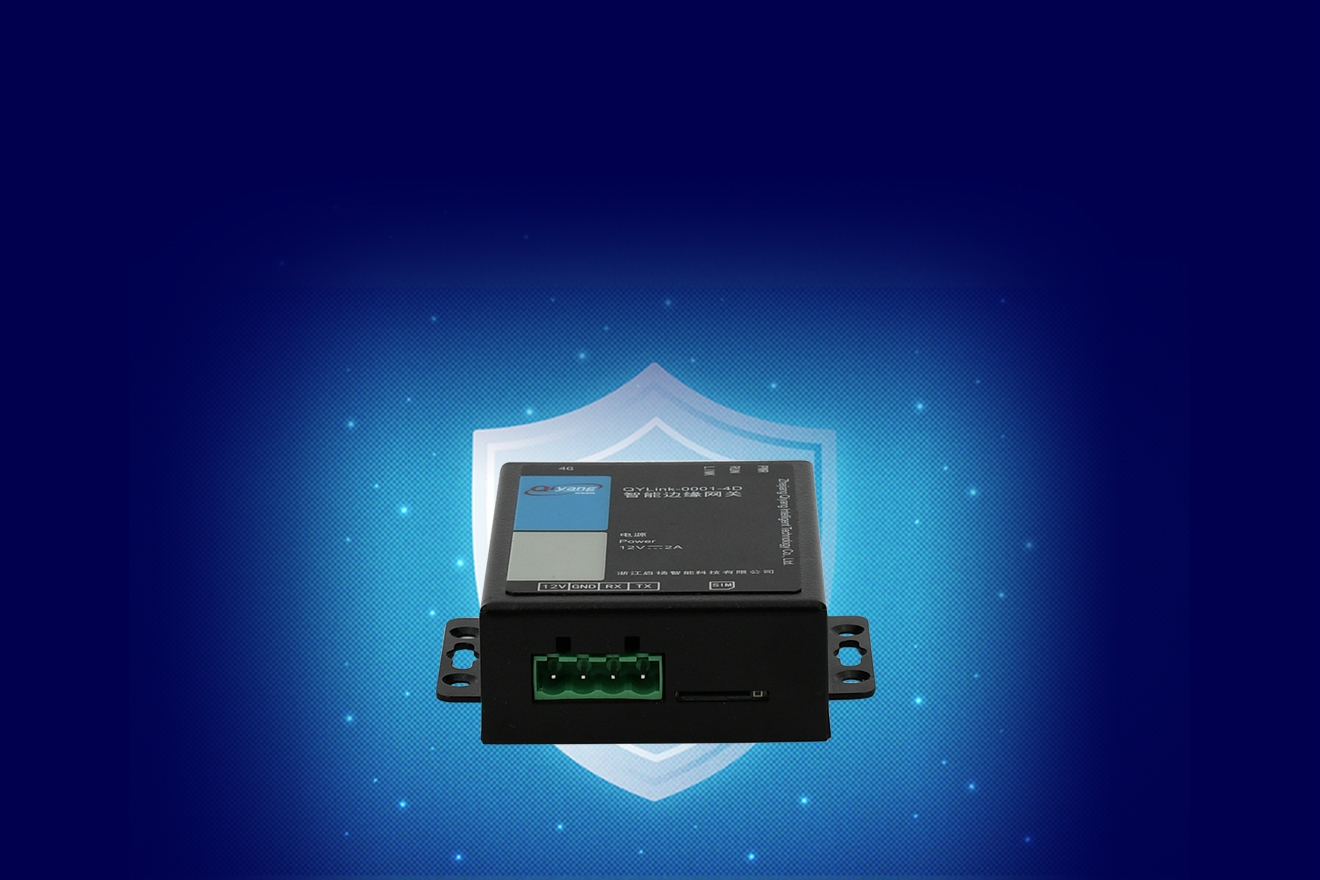

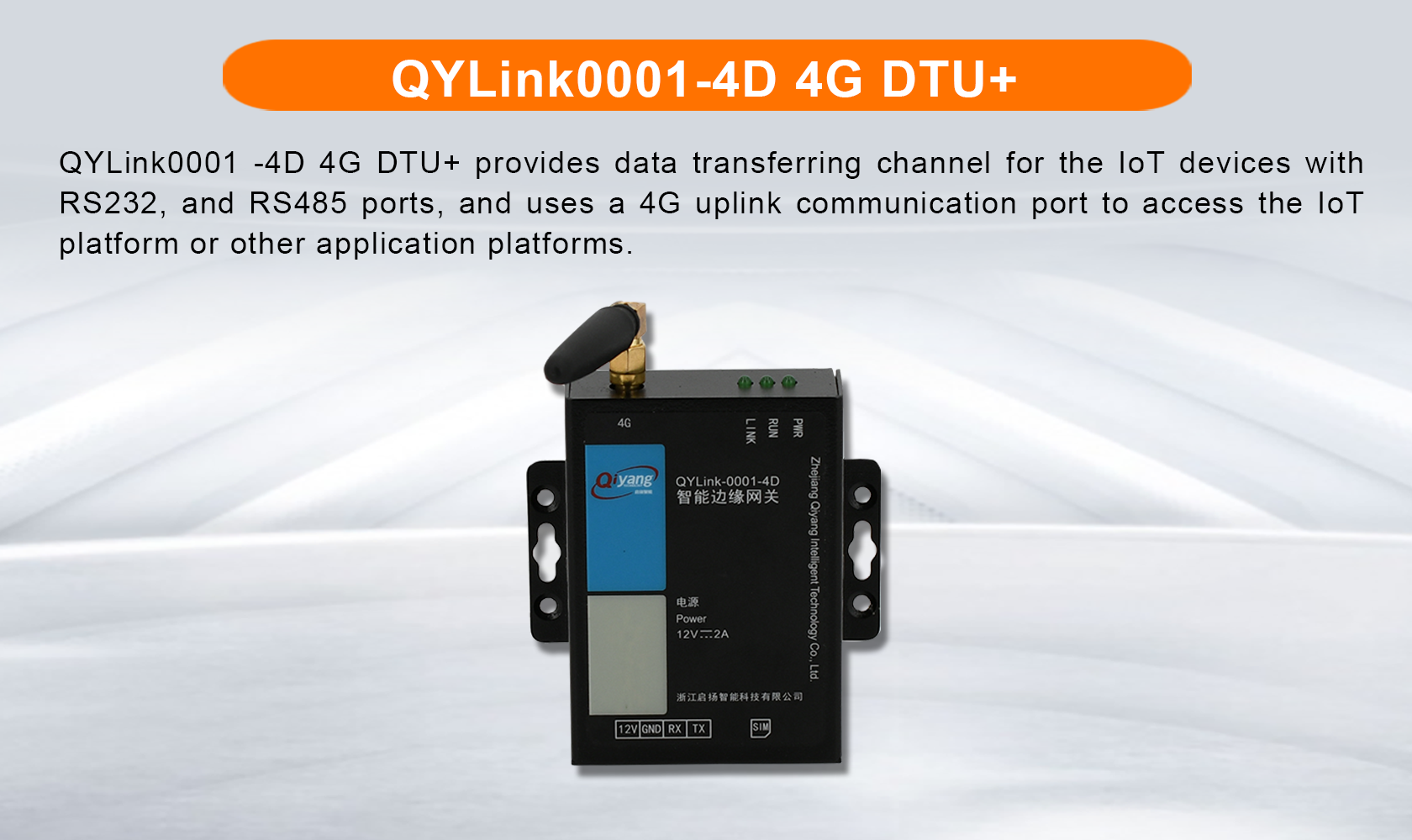

QYLink0001-4D
CPU: Industrial-Grade CPU, OpenCPU 300MHz
RAM: 32MB DDR2
Flash: 32MB NOR
4G: 4G Full Netcom

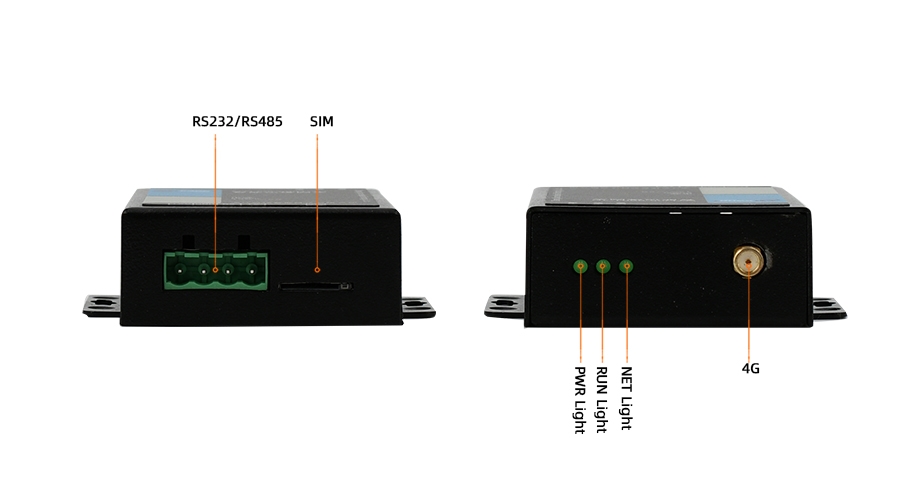

Industrial UART: 1*RS485/RS232

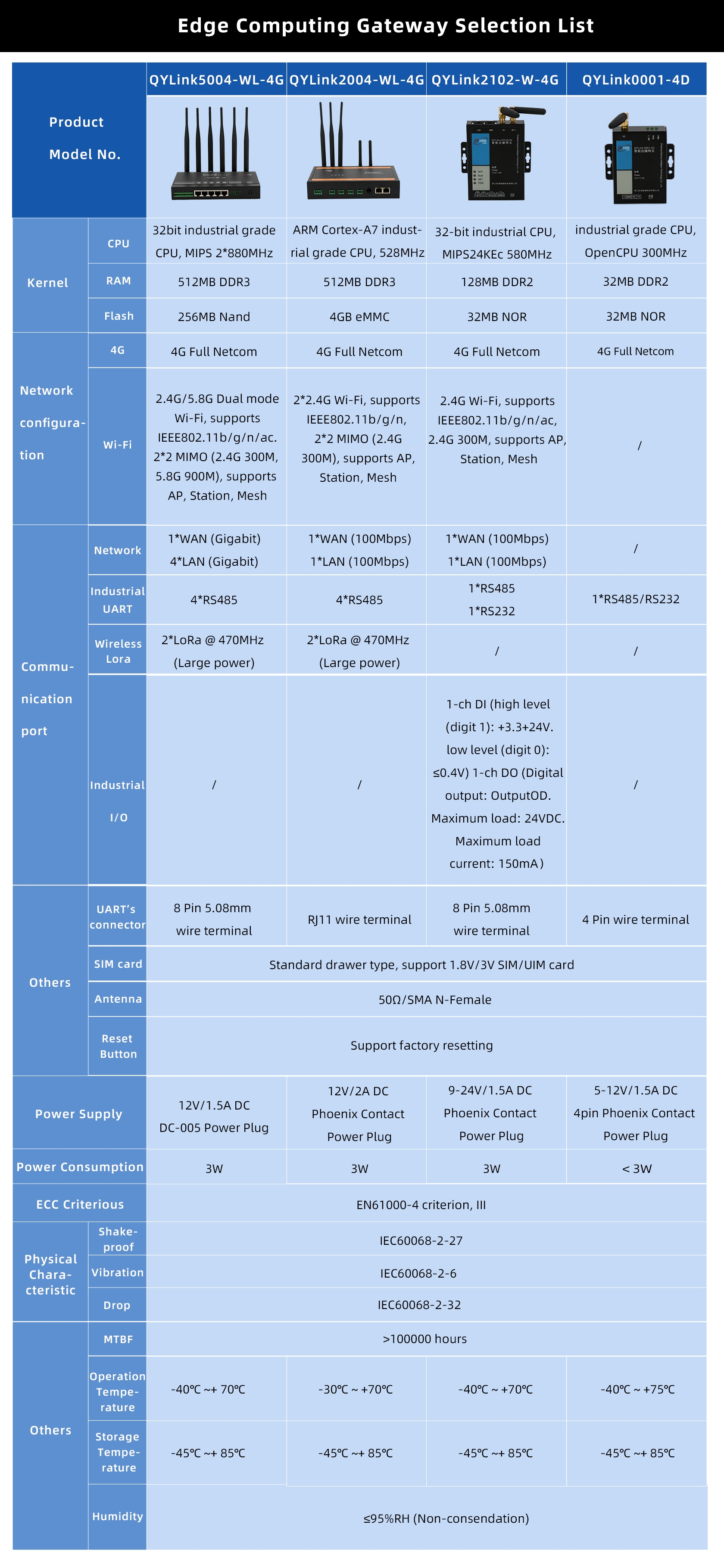

| Parameters | |||
|---|---|---|---|
| CPU | Industrial-Grade CPU, OpenCPU 300MHz | RAM | 32MB DDR2 |
| Flash | 32MB NOR | 4G | 4G Full Netcom |
| Industrial UART | 1*RS485/RS232 | UART' s connector | 4-Pin Wire Terminal |
| SIM Card | Standard Drawer Type | Antenna | 50Ω/SMA N-Female |
| Reset Button | Support factory resetting | Power Supply | 5-12V/1.5A DC 4Pin Phoenix Contact Power Plug |
| Power Consumption | <3W | ECC Criterious | EN61000-4 Criterion, III |
| Shockproof | IEC60068-2-27 | Vibration | IEC60068-2-6 |
| Drop | IEC60068-2-32 | MTBF | ＞100000 hours |
| Operating Temperature | -40℃~+75℃ | Storage temperature | -45℃~+85℃ |
| Working Humidity | ≤95%RH (non-consendation) | ||
